Boring Machine
DB-502 / 503 / 504 / 505 / 506 / 507

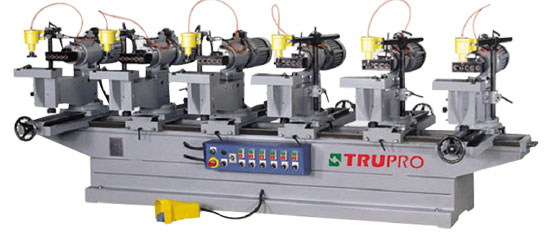

Horizontal Multiple-Head Boring Machine
FEATURES: - Powerful 2HP motor for each boring unit.
- Horizontal 360° swiveled boring unite.
- Special control circuit design, each boring unit can work independently as required.
- Precisely assembled air cylinder for the spindle head assure stable and accurate drilling smooth operation.
Horizontal 360° swiveled boring units
Examples of finishing
Model DB-502 DB-503 DB-504 DB-505 DB-506 DB-507 Number of boring units 2 3 4 5 6 7 Motor for each boring unit 2HP(std.) 3HP(opt.) Spindle speed 2860(50HZ), 3450(60HZ) Spindle thread M8×1.25P(or 5/16"×18UNC) / M10×1. 5P(or 7/16"×14UNC) Boring stroke 70 mm Max. working length Opposite 2100 mm Parallel 2900 mm Overall size (mm) 3400×850×1150 Packing size (mm) 3480×745×1350 3480×1290×1350 Net Weight (kg) 650 750 850 950 1050 1150 Gross Weight (kg) 850 950 1050 1150 1250 1350
