Boring Machine

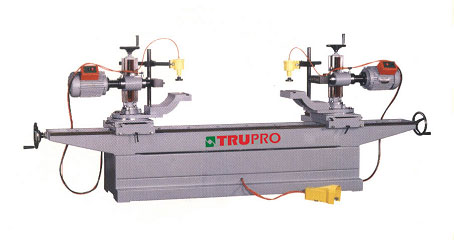

DB-502M / DB-502ML
Universal Boring Machine
FEATURES:
- Versatile and economic type of boring machine with multiple operation.
- 360° swiveled working table and boring units in horizontal are provided with independent electrical control.
Model DB-502M DB-502ML Motor 2 HP×2 2 HP×2 Spindle speed 2860 rpm(50HZ) 3450 rpm(60HZ) 2860 rpm(50HZ) 3450 rpm(60HZ) Spindle thread M8×1.25P(or 5/16"×18 UNC)/
M10×1.5P(or 7/16"×14UNC)M8×1.25P(or 5/16"×18 UNC)/
M10×1.5P(or 7/16"×14UNC)Boring stroke 60 mm 60 mm Max. working length 1000 mm 2000 mm Overall size 2100×550×1350 mm 3160×550×1350 mm Packing size 2250×670×1080 mm 3240×700×1350 mm N.W 410 kgs 500 kgs G.W 510 kgs 620 kgs
