Boring Machine

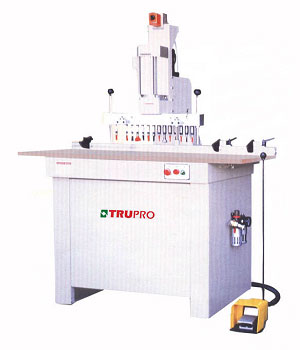

DB-A15/A21
Straight Line Boring Machine

  • FEATURES:

    • Convenient detachable machine frame assures durability.
    • Down feed boring operations.
    • Mechanical digital read out allows for accurate and consistent depth setting without scratching on the panel surface.
    • Convenient operation is made by simply pressing on a foot switch. Easy to maintain.
    • Motor starts only when in boring stroke to extend service life, save power consumption and reduces noise.
    • Fence and stop are fast set to the desired size.
    • Quickly chucks provide confide convenient fitting and dismantling for boring bits. Standard attached with 1/3 pcs.
  • Model DB-A15 DB-A21
    Motor 2 HP 32mm
    Table size 480 x 1200mm 480 x 1200mm
    Max. drilling depth 75 mm 75 mm
    Max. distance between center 32 mm 32 mm
    Compress air required 6~8kg/cm2 6~8kg/cm2
    Number of spindle per boring head 15 21
    N.W./G.W. 140/190kgs 150/200kgs
    Machine size 1200 x 700 x 1520mm 1200 x 700 x 1520mm
    Packing size 1340 x 750 x 1720mm 1340 x 750 x 1720mm
