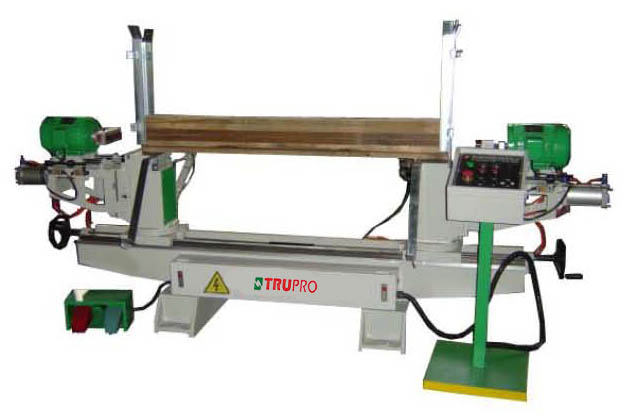

Boring Machine

Model

DB-2TA

Spindle motor

2 HP×2

Spindle speed RPM

50Hz-3000rpm , 60Hz-3500rpm

Head in line max. distance between drills

2600 mm

Head in line min. distance between drills

280 mm

Head at parallel max. distance between drills

2100 mm

Head at parallel min. distance between drills

300 mm

Max. boring depth

80 mm

Stroke travel

100 mm

Clamp cylinder

2

Max. spindle to table distance

60 mm

Air pressure

5.5 kg/cm2

Machine size

3100×750×960 mm

Packing size

2820×830×1480 mm

Net weight

640 kg

Gross weight

890 kg
