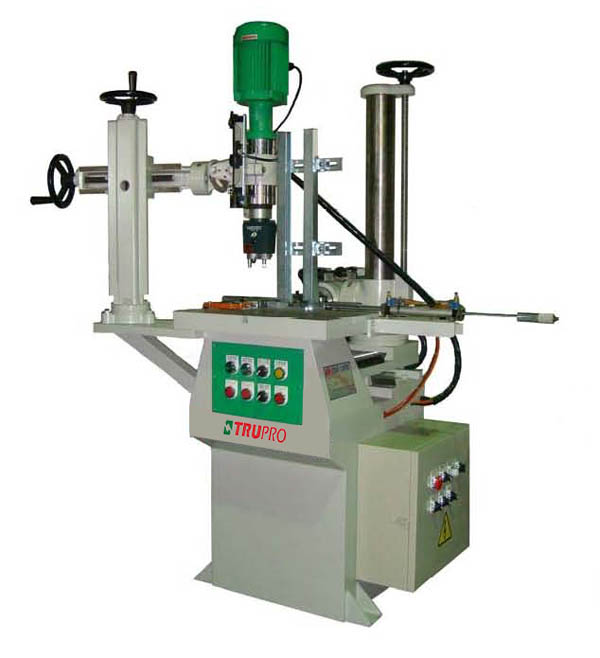

Boring Machine

Model

DB-340T1A

Spindle travel

80 mm

Max. boring depth

65 mm

Standard clamping thickness

150 mm

Spindle vertical swivel

90°

Spindle horizontal swivel

180°

Spindle motor

1 HP×1(H), 1HP×1(V)

Spindle speed

50Hz-3000rpm / 60Hz-3500rpm

Machine size

1100×620×1730 mm

Packing size

1000×720×1880 mm

Net weight

360 kg

Gross weight

450 kg
