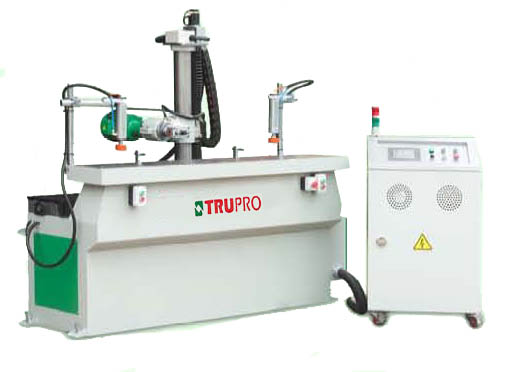

Boring Machine
DB-611A
Auto Boring Machine
Model
DB-611A
Spindle motor
2 HP
Spindle speed
50Hz-3000rpm / 60Hz-3500rpm
Hold down clamp
2
Max. boring depth
65 mm
Max. boring length
1200 mm
Max. boring width
300 mm
Standard clamping thickness
200 mm
Spindle vertical swivel
90°
Spindle horizontal swivel
180°
Distance between working table and floor
900 mm
Working table area
300×1800 mm
Machine size
2580×1180×1880 mm
Packing size
2730×1240×2030 mm
Net weight
750 kg
Gross weight
870 kg
