Milling Machine / Machining Center
MM-2S / MM-2VS / MM-4S / MM-4VS

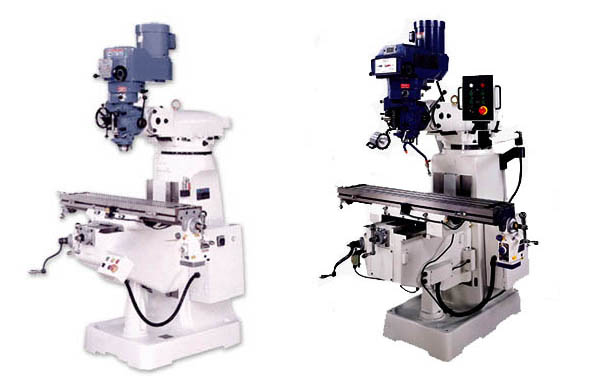

Vertical Turret Milling Machine
Standard accessories:
- l Tool and tool box.
- l One shot lubrication.
- l Chip cover front and rear.
- l X, Y turcite B(4S＆4VS).
- l Saddle size: 650 length (4S＆4VS)
Optional accessories:
- l X, Y power feed unit.
- l Coolant equip with tray.
- l Electric with control box.
- l Table elevating motor(4S＆4VS).
- l Spindle taper N.T.40(4S＆4VS).
- l Spindle motor 5HP-4P(N.S.T40).
Model
MM-2S
MM-2VS
MM-4S
MM-4VS
TABLE
WORKING SURFACE
1067 x 230mm
1270 x 254mm
T SLOT ( WxNO.xPITCH)
16 x 3 x 63mm
TRAVEL
XxYxZ-MANUAL
725 x 305 x 406mm
775 x 400 x 406mm
XxYxZ-AUTO
640 x 305 x 406mm
700 x 400 x 406mm
SPINDLE
SPINDLE NOSE
R8 OR N.S.T 30
STEPS
8
VARIABLE
8
VARIABLE
SPINDLE SPEED RPM (rpm)
80-2720
60-4200
80-2720
80-3800
SWIVELLING ANGLE
45° (R&L)
QUILL TRAVEL
127mm
QUILL FEEDS/REV
0.04/0.08/0.15
SPINDLE NOSE TO TABLE
57-463mm
40-446mm
SPINDLE CENTER TO CLUMN
213-533mm
200-680mm
CROSS TRAVEL OF RAM
320mm
480mm
HORIZONTAL ROTATION OF RAM
360°
MOTOR
VERTICAL SPINDLE
2 HP - 4P
3 HP - 4P
3 HP - 4P
3 HP - 4P
COOLANT PUMP
1/8 HP -2P
SIZE
MACHINE (LxWxH)
1400x1450x2100mm
1500x1500x2200mm
NET WEIGHT (KGS)
900kgs
1280kgs
