Milling Machine / Machining Center

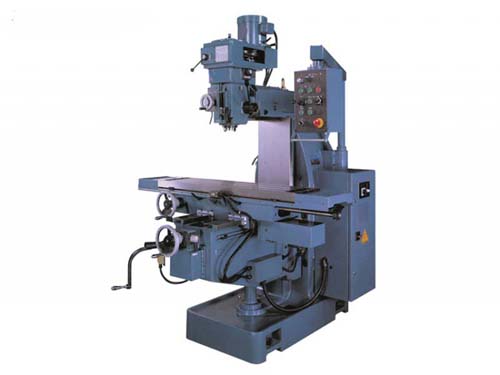

MM-S500A / MM-EVS500A
Vertical Milling Machine
Standard accessories:
- l X, Y axes ball screw C5 class.
- l X, Y axes turcite B slide way.
- l Vertical head auto lubrication pump.
- l X, Y axes servo motor.
Optional accessories:
- l Z axis servo motor 30-1150mm/min.
- l X axis travel 1120mm
Model
MM-EVS500A
MM-S500A
TABLE
WORKING SURFACE
1270 x 370mm
(Optional-1470 x 370)
T SLOT ( WxNO.xPITCH)
18 x 3 x 80mm
TRAVEL
XxYxZ-MANUAL
930 x 520 x 360mm
XxYxZ-AUTO
920 x 500 x 360mm
SPINDLE
SPINDLE NOSE
N.S.T 40
STEPS
VARIABLE
16
SPINDLE SPEED RPM
60-3600rpm
75-3600rpm
SWIVELLING ANGLE
45° (R&L)
QUILL TRAVEL
140mm
QUILL FEEDS/REV
0.035/0.07/0.14
SPINDLE NOSE TO TABLE
0-500mm
SPINDLE CENTER TO CLUMN
185-685mm
CROSS TRAVEL OF RAM
500mm
HORIZONTAL ROTATION OF RAM
---
MOTOR
VERTICAL SPINDLE
5 HP - 4P
5 HP - 2P/4P
COOLANT PUMP
1/8 HP -2P
SIZE
MACHINE (LxWxH)
1870x1700x2285mm
NET WEIGHT (KGS)
2250kgs
