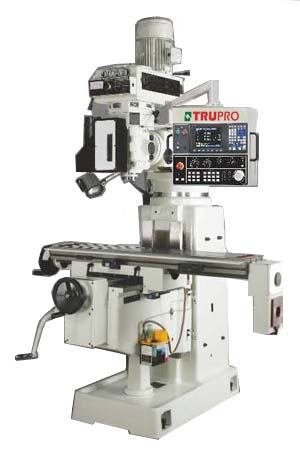

Milling Machine / Machining Center
l 10”×54” table
l 5HP spindle motor (5HP inverter motor by optional).
l NST#40 spindle
l Turcite-B coated on XY slide-way & gibs.
l Hardened and ground on XY
l Slide-ways & table
l Square way on Y axis & column.
l Grinding on table T-slot
l Dia. 1-1/2”(38mm) lifting screw.
l Ball-screw on XY axis
Model
MM-520CV
Table size
1370×250 mm
T slot (number × width)
3×15.875 mm
Longitudinal travel
830 mm
Cross travel
405 mm
Vertical travel
378 mm
Quill travel
127mm
Ram travel
560mm
Spindle nose to table surface
150~528mm
Over swivel on turret
360°
Head swivel (R & L)
45°
Head tilt (Up & Down)
Nil (Opt. 45°)
Spindle to column surface
168~730mm
Spindle motor
5HP
Spindle taper
NST#40 or R8 (optional)
Quill feed rate
0.04~0.08~0.14mm/rpm
Spindle speed
60Hz-60~4500rpm / 50Hz-50~3800rpm
XY feed rates
0~3000mm/min
XY rapid traverse
5000mm/min
Machine size
2375×1850×1900 mm
N.W.
1800kgs
