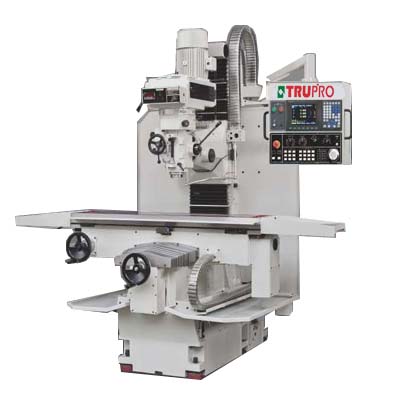

Milling Machine / Machining Center
l 12”×50” table.
l 5HP inverter motor.
l NST#40 spindle.
l Turcite-B coated on XY slide-way & gibs.
l XYZ slide-ways, table and T-slot are hardened and ground.
l X&Y motor bracket protect axis motors from damage.
l Precision ground ball screws on XYZ, provide high precision movement and reduce heat deformation on all axis.
l Standard with column splash guards (both sides) and coolant tray.
Model
MM-185CB
Table size
1270×305 mm
T slot (number × width)
3×15.875 mm
Longitudinal travel
985 mm
Cross travel
450 mm
Vertical travel
450 mm
Quill travel
127mm
Spindle nose to table surface
150~600 / 67~425mm
Head swivel (R & L)
45°
Spindle motor
5HP ( Variable speed)
Spindle taper
NST#40 or R8 (optional)
Spindle speed
75~5000rpm
Quill feed rate
0.04~0.08~0.14mm/rpm
Spindle to column surface
500mm
XY feed rates
0~3000mm/min
XY rapid traverse
5000mm/min
Machine size
2200×1900×2600 mm
N.W.
2300kgs
