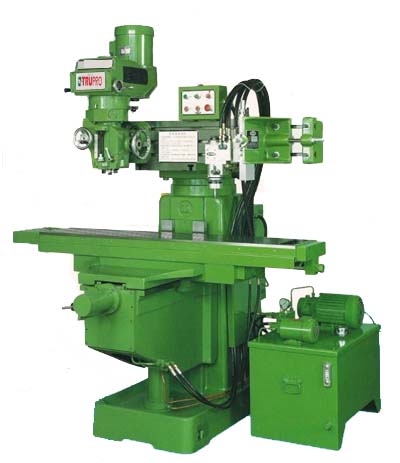

Milling Machine / Machining Center
l The machine body is made of high grade mechanist cast iron rousted, superior of material quality.
l The step variable speed spindle which adopt the German made P4 grade bearings, low noise, great of power output and the transmitting belt is not wasted during in heavy duty processing.
lThe slide-way is hardened by heat-treatment and precision ground following, furthermore, those are pasted with Teflon, no vibration & the slide way is not wasted. Long servicing life.
l Special designed of hyd. Driving installation, which is very suit able for various moulding processing.

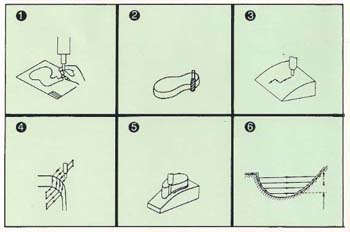

l The copying unit which being with following benefit: high sensitivity, compact, high precision for forward & reverse processing and no vibration
Model
MM-3D
Table surface
1600×305mm
Longitudinal travel
700mm
Cross travel
350mm
Vertical travel (Hyd.)
150mm
Vertical travel (Manual)
250mm
Max. load of table
600kgs
Spindle motor
5HP
Hyd. Driving power
2HP
Spindle rev. speed
60~3800rpm
Spindle nose taper
NST#40
Max. distance spindle to table
440mm
Copying dimension
700×350×150mm
Max. distance from spindle to tracer.
750mm
N.W./G.W.
2400/2800kgs
measurement
2050×1850×2240mm
