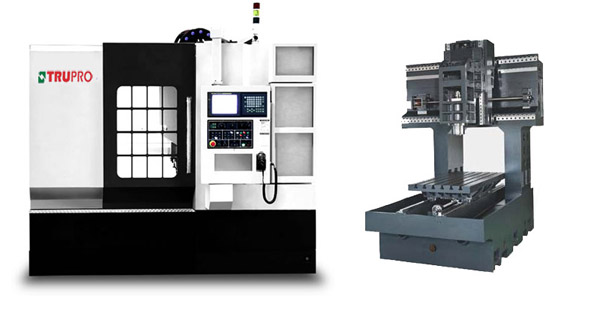

Milling Machine / Machining Center
l Main frame is made of meehanite castings for superior rigidity.
l Steel telescopic ways cover on axes protecting ways and ball screws from dust.
l Three axes are mounted with high speed, heavy duty PMI roller type linear guide ways.
lSix slide blocks on Z-axis linear way for long-term repeatability accuracy and long working life time.
l Fully enclosed splash guard to ensure the security during operation.
Direct Type SpindleModel
MM-65B
MM-8B
Travel
X-axis travel
650mm
800mm
Y-axis travel
550mm
600mm
Z-axis travel
450mm
450mm
Spindle nose to travel surface
100-550mm
100-550mm
Table
Table working surface
650 x 550mm
900 x 600mm
Max. loading capacity
500kgs
600kgs
T-slots (No. x W x P)
18 x 6 x 100mm
Spindle
Spindle speed(rpm)
12000rpm(Std.)
15000rpm(Opt.)
12000rpm(Std.)
15000rpm(Opt.)
Motor
Direct type
Direct type
Spindle drive motor
7.5KW / 11KW(Opt.)
7.5KW / 11KW(Opt.)
Spindle taper hole
BT-40
BT-40
A.T.C
Tool storing capacity
16
16
Type
Armless
Armless
Max. tool dimension
150mm
150mm
Max. tool length
300mm
300mm
Feedrate
X/Y/Z rapid traverse
30/30/24M/min
30/30/24M/min
Max. cutting rate
12M/min
12M/min
Accuracy
Positioning
0.005mm/300mm
0.005mm/300mm
Repeatability
0.003mm
0.003mm
Roundness
0.008mm/300mm
0.008mm/300mm
Machine size
Dimension
2550 x 2150 x 2720mm
2750 x 2205 x 2720mm
Weight
8600kgs
9800kgs
Standard accessories
Optional Accessories
1. CNC Mitsubishi M70 / M730
2. Fully enclosed splash guard
3. X/Y/Z axes guide-way cover
4. Spindle cooling system
5. Auto lubrication system
6. Work lamp, Alarm lamp
7. Tool box
8. Leveling bolts and pad
9. Portable M.P.G
10. Auto power off (M30)
11. Machine manuals
1. CNC controller ( Fanuc / Anilam / Siemens / Fagor / Selca / Heidenhain)
2. Auto tool length measurement
3. CNC rotary table 4th axis
4. CNC rotary table 5th axis
5. Linear scale feed back
6. Chip conveyor with cart
7. Transformer 220V-380V-440V
8. Air cooled heat exchanger
9. BT40 ATC 24 / 30e (Arm type)
10. Graphite processing device
11. Precision tool holder, collet
