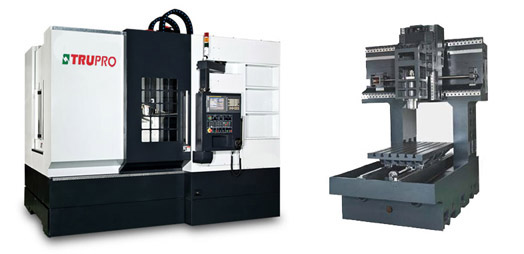

Milling Machine / Machining Center
l Main frame is made of meehanite castings for superior rigidity.
lSteel telescopic ways cover on axes protecting ways and ball screws from dust.
l Three axes are mounted with high speed, heavy duty PMI roller type linear guide ways.
l Six slide blocks on Z-axis linear way for long-term repeatability accuracy and long working life time.
l Fully enclosed splash guard to ensure the security during operation.
Direct Type SpindleModel
MM-10B
MM-12B
Travel
X-axis travel
1000mm
1200mm
Y-axis travel
700mm
700mm
Z-axis travel
500mm
500mm
Spindle nose to travel surface
100-600mm
100-600mm
Table
Table working surface
1100 x 700mm
1300 x 700mm
Max. loading capacity
800kgs
1000kgs
T-slots (No. x W x P)
18 x 6 x 100mm
18 x 6 x 100mm
Spindle
Spindle speed(rpm)
12000rpm(Std.)
15000rpm(Opt.)
12000rpm(Std.)
15000rpm(Opt.)
Motor
Direct type
Direct type
Spindle drive motor
7.5KW / 11KW(Opt.)
7.5KW / 11KW(Opt.)
Spindle taper hole
BT-40
BT-40
A.T.C
Tool storing capacity
16
16
Type
Armless
Armless
Max. tool dimension
150mm
150mm
Max. tool length
300mm
300mm
Feedrate
X/Y/Z rapid traverse
30/30/24M/min
30/30/24M/min
Max. cutting rate
12M/min
12M/min
Accuracy
Positioning
0.005mm/300mm
0.005mm/300mm
Repeatability
0.003mm
0.003mm
Roundness
0.008mm/300mm
0.008mm/300mm
Machine size
Dimension
3050 x 2205 x 2720mm
3650 x 2205 x 2720mm
Weight
11000kgs
12000kgs
Standard accessories
Optional Accessories
1. CNC Mitsubishi M70 / M730
2. Fully enclosed splash guard
3. X/Y/Z axes guide-way cover
4. Spindle cooling system
5. Auto lubrication system
6. Work lamp, Alarm lamp
7. Tool box
8. Leveling bolts and pad
9. Portable M.P.G
10. Auto power off (M30)
11. Machine manuals
1. CNC controller ( Fanuc / Anilam / Siemens / Fagor / Selca / Heidenhain)
2. Auto tool length measurement
3. CNC rotary table 4th axis
4. CNC rotary table 5th axis
5. Linear scale feed back
6. Chip conveyor with cart
7. Transformer 220V-380V-440V
8. Air cooled heat exchanger
9. BT40 ATC 24 / 30e (Arm type)
10. Graphite processing device
11. Precision tool holder, collet
