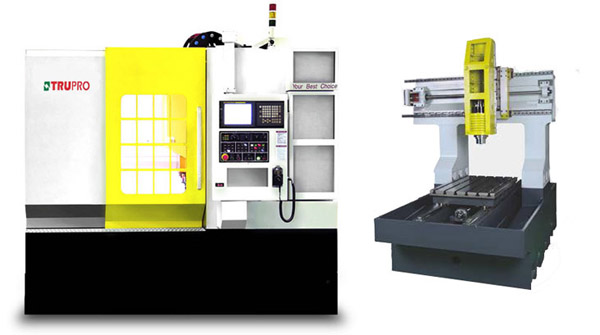

Milling Machine / Machining Center
lSpecial double column high speed machine structure for rigid structure and high precision.
l All castings are stress relieved and seasoning treated for long-term accuracy and long service life.
l NSK roller-type linear guide ways on three axis feature superior dynamic accuracy and long service life.(Opt.)
l NSK six slide blocks on Z-axis linear way for long-term repeatability accuracy and long working life time.(Opt.)
l Grease lubrication system features low pollution and low friction.(Opt)
Model
MM-10E/10A
Travel
X-axis travel
1000mm
Y-axis travel
700mm
Z-axis travel
450mm/500mm
Spindle nose to travel surface
100-500mm / 100-600mm
Table
Table working surface
1100 x 700mm
Max. loading capacity
800kgs
T-slots (No. x W x P)
18 x 6 x 100mm
Spindle

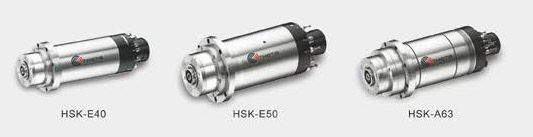

Spindle speed(rpm)
HSK
Grease
Oil air
E40
30000
36000(Opt.)
E50
20000
30000(Opt.)
A63
16000
20000(Opt.)
Motor
Built-in type
Spindle drive motor
E40(4.6) 10KW
E50 15KW / A63 18KW
Spindle taper hole
HSK-E40 /E50 /A63
A.T.C
Tool storing capacity
20/16/16 Tools
Type
Armless
Max. tool dimension
40/50/65mm
Max. tool length
120/150/200mm
Feedrate
X/Y/Z rapid traverse
32/32/24M/min
Max. cutting rate
12M/min
Accuracy
Positioning
0.005mm/300mm
Repeatability
0.003mm
Roundness
0.008mm/300mm
Machine size
Dimension
3050 x 2205 x 2617 / 2720mm
Weight
8400kgs / 11000kgs
Standard accessories
Optional Accessories
1. CNC Mitsubishi M730
2. Fully enclosed splash guard
3. X/Y/Z axes guide-way cover
4. Spindle cooling system
5. Auto lubrication system
6. Work lamp, Alarm lamp
7. Tool box
8. Leveling bolts and pad
9. Portable M.P.G
10. Auto power off (M30)
11. Machine manuals
1. CNC controller ( Fanuc / Anilam / Siemens / Fagor / Selca / Heidenhain)
2. Auto tool length measurement
3. CNC rotary table 4th axis
4. CNC rotary table 5th axis
5. Linear scale feed back
6. Chip conveyor with cart
7. Transformer 220V-380V-440V
8. Air cooled heat exchanger
9. BT40 ATC 24 / 30e (Arm type)
10. Graphite processing device
11. Precision tool holder, collet
