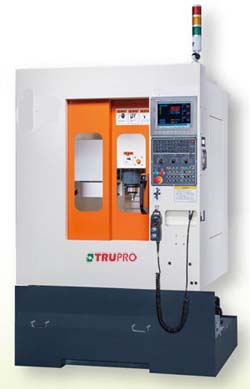

Milling Machine / Machining Center
Model
MM-500YM
Table surface size
400×250 mm
Table loading
60kgs
X/Y/Z axis travel
350×250×300mm
Spindle nose to table
70-370mm
Spindle motor
2.2/3.7KW
Spindle speed
10000 rpm
Spindle taper
BT-30(Belt Drive)
X/Y/Z Axis motor
0.75/0.75/1.0 KW
X/Y/Z Rapid traverse
15/15/15 M/min
Machine weight
1200 kgs
Machine dimension s
1600×1300×1900 mm
Air pressure required
6-8 kgs/cm2
Power consumption
10KVA
T slot (Width x No. x Dist.)
12×3×80mm
Standard accessories:
Optional accessories:
l Auto lubrication system.
l Coolant system
l Full enclosure
l Operation and programming manual
l Tool box
l 8 tool armless magazine(BT-30)
l Heat exchanger
l Leveling bolts and pads
l Working light and 3 color alarm indicator
l Rigid tapping
l Electronic touch probe(A.T.L.M)
l 30000rpm built-in spindle(ISO25)
l Automatic voltage regulator(A.V.R)
l Oil skimmer
l 4th axis rotary table
l Oil mist collector
l Chip conveyor
l Spindle cooler
