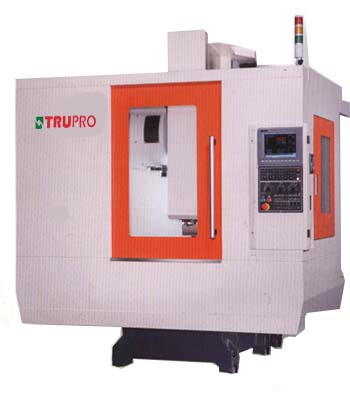

Milling Machine / Machining Center
Model
MM-500YM
Table surface size
620×420 mm
Table loading
250kgs
X/Y/Z axis travel
500×400×400mm
Spindle nose to table
200-650mm
Spindle motor
5.5KW
Spindle speed
12000 rpm
Spindle taper
BT-30(Direct Drive)
X/Y/Z Axis motor
1.5/1.5/3.5 KW
X/Y/Z Rapid traverse
48/48/48 M/min
Machine weight
2850 kgs
Machine dimension s
2050×1750×2290 mm
Air pressure required
6-8 kgs/cm2
Power consumption
15KVA
T slot (Width x No. x Dist.)
18×3×125mm
Standard accessories:
Optional accessories:
l Auto lubrication system.
l Coolant system
l Full enclosure
l Operation and programming manual
l Tool box
l 12 tool armless magazine(BT-30)
l Heat exchanger
l Leveling bolts and pads
l Working light and 3 color alarm indicator
l Rigid tapping
l Spindle cooler
l Electronic touch probe(A.T.L.M)
l 15000rpm/24000rpm Direct drive spindle
l Automatic voltage regulator(A.V.R)
l Oil skimmer
l 4th axis rotary table
l Oil mist collector
l Chip conveyor
l Coolant through spindle
l Synchronized tool change system
