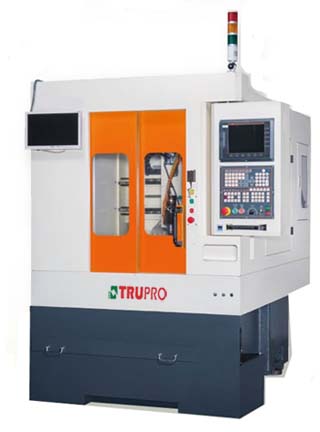

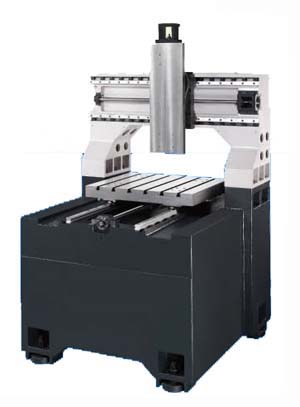

Milling Machine / Machining Center

Model

MM-650YM

Table surface size

600×500 mm

Table loading

100kgs

X/Y/Z axis travel

500×500×200mm

Spindle nose to table

-

Spindle motor

3.7KW

Spindle speed

30000 rpm

Spindle taper

ISO-25(Built in)

X/Y/Z Axis motor

1.0/1.0/1.0 KW

X/Y/Z Rapid traverse

30/30/15 M/min

Machine weight

2000 kgs

Machine dimension s

1750×1450×1900 mm

Air pressure required

6-8 kgs/cm2

Power consumption

15KVA

T slot (Width x No. x Dist.)

14×6×90mm

Standard accessories:

Optional accessories:

l Auto lubrication system.

l Coolant system

l Full enclosure

l Operation and programming manual

l Tool box

l 12 tool armless magazine(BT-30)

l Heat exchanger

l Leveling bolts and pads

l Working light and 3 color alarm indicator

l Spindle cooler

l Electronic touch probe(A.T.L.M)

l 60000rpm built-in spindle

l Automatic voltage regulator(A.V.R)

l Oil skimmer

l 4^th axis rotary table

l Oil mist collector

l Chip conveyor
