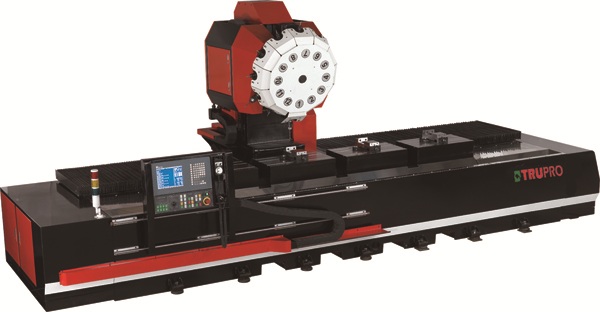

CNC Tapping Center
l X axle working length is available in three specifications of 3500 / 4500 / 6500mm and custom-made orders are also acceptable.
l Use precision high speed spindles to provide higher stability, longer life and longer working time.
l Movable column type is used to achieve the maximum working range with the smallest mechanical measurement.
l Precision ball linear rail is mounted on three axles to enhance the accuracy and stability during working.
l Precision grade gear unit/gears are used for X-axle presetting, which can be replaced with ball stud to enhance the precision level of the work piece.
l Clamp-arm cutter magazine is used for changing the cutter above the working area to improve the working speed and increase the parts production.
l The operation box is designed in a movable manner to achieve easier parts calibration and speedier operation.
l Three axles are calibrated by laser to guarantee that the mechanical accuracy shall be within the required tolerance at all times.

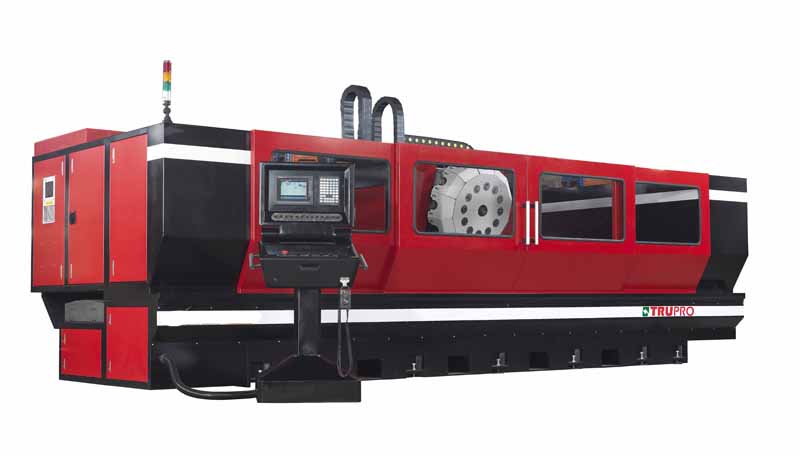

CE Safety Cover(Optional)
Model
TP-35B3
TP-45B3
TP-65B3
Trip
X-axis
3500mm
4500mm
6500mm
Y-axis
350mm
Z-axis
300mm
Feed rate
Speed infeed(XYZ)
36/12/12M/min
Leather infeed(XYZ)
8/8/8M/min
Positioning accuracy
X axis ball screw
X: ±0.04mm
Y/Z axis ball screw
Y/Z: ±0.01mm
Repeatability accuracy
±0.01mm
Server motor
X server
2KW
Y server
2KW
Z server
1.5KW (with brake)
Main axis
Main axis power
3.7KW / 5.5KW
Main axis RPM
8000RPM
Main taper
BT30
Working table
Axis from top working table range
150-450mm
Working table
400×3500mm
400×4500mm
400×6500mm
ATC knife
Knife hander
12
Exchange
Tapping center tool changer
Max. Dia./ length
50/150mm
Max. weight
6kgs
Coolant
Coolant type
Oil mist
Coolant size
4L
Controller
Controller axis
3axis
Transmission type
Internet card / RS232
Normal
Type of dust
Chip belt conveyor
Collect dust type
Scraper type clip conveyor
Air pressure measure
6kg/cm2
Base electric
15KVA
Safe cover
CE Safe cover (Optional)
