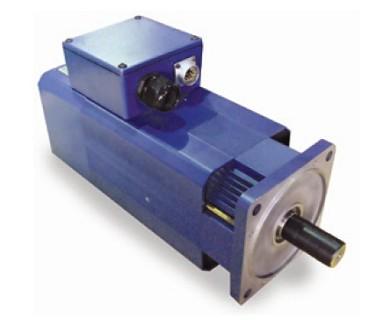

Servo-Motor
MTR-SV80SS / MTR-SV90SS / MTR-SV90MS
Asynchronous-Servo Spindle Motor
Model
MTR-SV80SS
MTR-SV90SS
MTR-SV90MS
Rated voltage Un
220/380
220/380
220/380
Rated power output Pn
0.75KW
1.5KW
2.2KW
Rated speed Nn
1500rpm
1500rpm
1500rpm
Rated torque Mn
4.7Nm
9.4Nm
13.8Nm
Rated current In
3.3/1.9
6.6/3.8
9.7/5.6
Efficiency
0.85
0.85
0.85
Max speed Nmax
Standard bearing
8000rpm
8000rpm
8000rpm
Max current Imax
6/3.46A
11/6.35A
15.33/8.8A
Weight
13.56kgs
17.3kgs
20.5kgs
Rated inertia J
26.62kg/cm2
32.94kg/cm2
45.27kg/cm2
Protection
IP54
IP54
IP54
Fan
Rated voltage UL
Frequency fL
1Φ 220V
50/60Hz
1Φ 220V
50/60Hz
1Φ 220V
50/60Hz
