Power Chuck
LC-RC Series

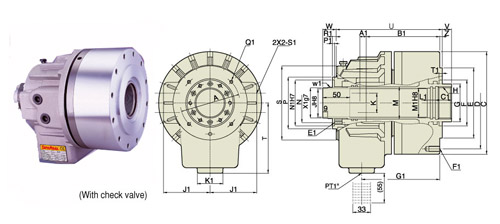

Super High Speed Through-hole Rotary Hydraulic Cylinder
Model
Effective area (cm2)
Piston stroke (mm)
Max. speed (rpm)
Max. pressure
(kgf/cm2)
Moment of inertia (kgf.m2)
Weight (kgs)
Max. oil leakage from drain port and max. internal oil leakage (liter/min)
extend
retract
RC
4
47
41.5
9
8000
40
0.02
5.6
3
5
67
64.5
15
8000
40
0.044
8.6
3
6
100
89
15
7000
40
0.078
12
3
8
161
150
22
6200
40
0.21
16.8
3.9
10
198
183
25
4700
40
0.38
26
4.2
10X
198
183
25
4700
40
0.38
26
4.2
12
252
234
30
3800
40
0.61
33
4.5
15
345
336
23
2800
40
1.21
55
7
