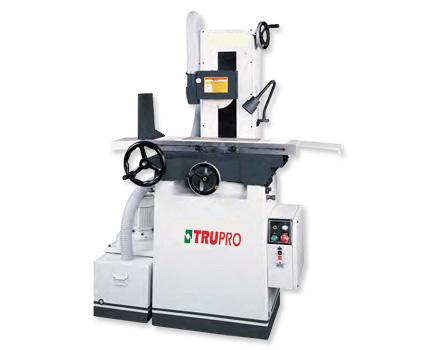

Surface Grinder Machine

Model

MG-818M

Table size

203×460mm

Max. grinding surface(L*W)

480×228mm

Max. distance center of spindle to table

460mm

Standard magnetic chuck size

200×450mm

Longitudinal movement of table

Max. travel hydraulic

480mm

Max. travel manual

510mm

Max. travel infinitely variable

60HZ: 5-25M/min 50Hz: 5-20M/min

Cross transverse travel

Auto transverse increment

1-10mm

Auto constant feeding speed

20-320mm/min

Max. auto transverse travel

235mm

Max. manual transverse travel

250mm

Handwheel per revolution

5mm

Handwheel per graduation

0.02mm

Wheelhead vertical infeed

Auto infeed

ASDII :0.001-0.05mm

Step feed (Jog)

---

Rapid travel approx.

---

Slow travel approx.

---

Handwheel revolution

1mm (ASDII)

Handwheel graduation

0.005mm(ASDII)

Grinding spindle drive

Speed

60HZ: 3450rpm 50Hz: 2850rpm

power rating

2.0HP

Grinding wheel size(D×W×B)

203×12.7(max.19mm)×31.75mm

Hydraulic motor

1HP×6P

Cross-feed motor

40W×6P

Elevating motor

40W×4P

Floor space

1810×1285×1680mm

Rated power approx.

3HP

N.W. / G.W.

1170kgs / 1340kgs

Packing dimensions

1120×1000×1830mm
