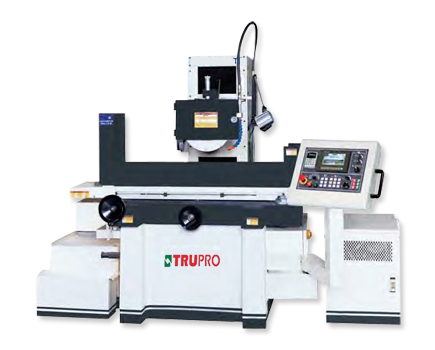

Surface Grinder Machine

Model

MG-1236TD

Table size

305×915mm

Max. grinding surface(L*W)

915×330mm

Max. distance center of spindle to table

630mm (Optional:720mm)

Standard magnetic chuck size

300×900mm

Longitudinal movement of table

Max. travel hydraulic

960mm

Max. travel manual

1000mm

Max. travel infinitely variable

60HZ: 5-25M/min 50Hz: 5-20M/min

Cross transverse travel

Auto transverse increment

1-25mm

Auto constant feeding speed

20-320mm/min

Max. auto transverse travel

350mm

Max. manual transverse travel

380mm

Handwheel per revolution

5mm

Handwheel per graduation

0.02mm

Wheelhead vertical infeed

Auto infeed

0.001-0.05mm

Step feed (Jog)

0.001mm

Rapid travel approx.

150mm/min

Slow travel approx.

6mm/min

Handwheel revolution

---

Handwheel graduation

---

Grinding spindle drive

Speed

60HZ: 1450rpm 50Hz: 1750rpm

power rating

5.0HP (Optional:7.5HP)

Grinding wheel size(D×W×B)

355×50mm×127mm

Hydraulic motor

3HP×6P

Cross-feed motor

750W

Elevating motor

1KW

Floor space

3550×1970×2050mm

Rated power approx.

11HP(Spindle motor:5HP), 13.5HP(Spindle motor:7.5HP

N.W. / G.W.

3330kgs / 3700kgs

Packing dimensions

2930×2290×2240mm
