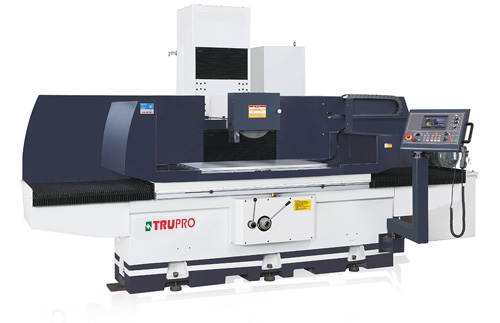

Surface Grinder Machine

Model

MG-2448TD / MG-2448CNC

Table size

600×1200mm

Max. grinding surface(L*W)

1260×610mm

Max. distance center of spindle to table

720mm (Optional:850mm)

Standard magnetic chuck size

600×1200mm

Longitudinal movement of table

Max. travel hydraulic

1300mm

Max. travel manual

1350mm

Max. travel infinitely variable

60HZ: 5-25M/min 50Hz: 5-20M/min

Cross transverse travel

Auto transverse increment

1-25mm

Max. auto transverse travel

660mm

Wheelhead vertical infeed

Auto infeed

0.001-0.05mm

Step feed (Jog)

0.001-0.05mm

Rapid travel approx.

460mm/min

Slow travel approx.

6mm/min

Handwheel revolution

5mm

Handwheel graduation

0.001mm×1/0.001mm×2/0.001mm×4(TD)

0.0001mm×1/0.0001mm×10/0.0001mm×100(CNC)

Grinding spindle drive

Speed

60HZ: 1750rpm 50Hz: 1450rpm

power rating

10HP/4P

Grinding wheel size(D×W×B)

405×50mm×127mm

Hydraulic motor

7.5HP×6P

Cross-feed motor

2KW

Elevating motor

2KW

Floor space

4300×3500×2350mm

Rated power approx.

18HP

N.W. / G.W.

6500kgs / 7500kgs

Packing dimensions

4100×2290×2450mm
