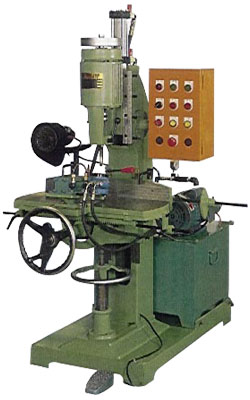

Chisel Mortiser

CM-105
Hydraulic Hollow Chisel Mortiser
  • Model CM-105
    Chisel range 1/4" to 1"
    Table 14" x 27-1/2"
    Table cross traverse 5"
    Table longitudinal traverse 18"
    Table vertical traverse 12"
    Head drive Hydraulic
    Clamp drive Hydraulic
    Chuck capacity 1-1/8"
    Spindle speed 3400RPM
    Maximum stock width 12"
    Maximum mortising depth 4"
    Head motor 1HP/2HP
    Hydraulic pump motor 1HP
    Net weight 380kgs
    Gross weight 460kgs
    Packing dimension (LxWxH) 45" x 37" x 74"
