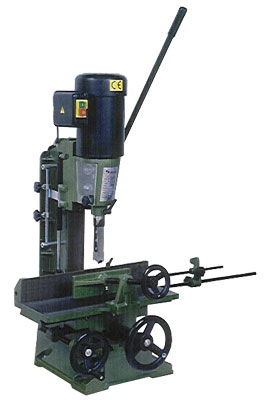

Chisel Mortiser
CM-2500
Hollow Chisel Mortiser
Model CM-2500 Chisel Capacity 6-25mm (1/4"-1") Max Chisel Stroke 150mm (6") Distance From Fence To Center Chisel 76mm (3") Distance From Center Chisel To table 203mm (8") Chuck Capacity 13mm (1/2") Speed Of Spindle 50HZ/2850 R.P.M.
60HZ/3450 R.P.M.Size Of Table 200x450mm (8"x18") Size Of Base 300x400mm (12"x15 1/2") Table Molement Longitudinal 370mm (14 1/2") Table Molement Lateral 76mm (3") Motor 1HP (0.75KW) Overall Height 970mm (38") Net Weight 86 kgs Gross Weight 98 kgs CUFT 10.10' Packing Size 590x590x840 (23" x 23 " x 33")
Special Accessories Drill Adapt Shaft 1 pc Drill Bush 1 pc 1/2" Chuck & Key 1 pc 1/4" (6mm) Chisel & Bit 1 pc 3/8" (10mm) Chisel & Bit 1 pc 1/2" (12mm) Chisel & Bit 1 pc 5/8" (16mm) Chisel & Bit 1 pc 3/4" (19mm) Chisel & Bit 1 pc 1" (25mm) Chisel & Bit 1 pc Standard Accessories Chisel Bush 1 pc 1/2" Chuck & Key 1 pc
