Fixed Head CNC Lathe

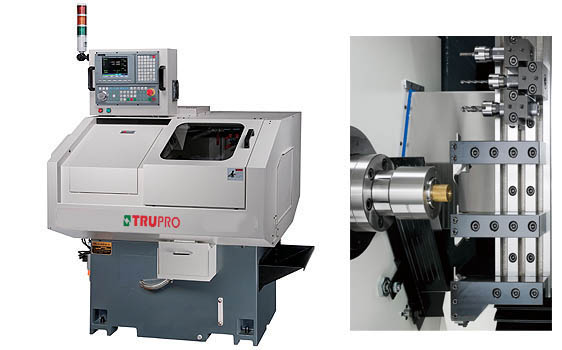

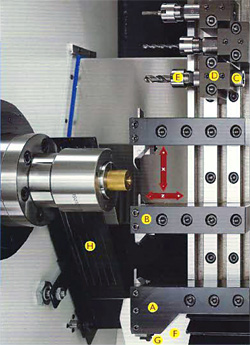

Features:
A.Left-handed cut-off tool holder (I pc, standard)
B.2-position OD tool holder (tool shank radially mounted) (Standard, 2pcs)
C.Fixed ID tool ER16 collect holder (standard:3pcs)
D.20mm bore 1 position ID tool rest (standard:3pcs)
E. ER16 drill collect nut (standard:3pcs)
F. Product receiving mouth
G. OD tool center height adjustment screw
H. Product catcher
Tool holders
2-position ID tool rest (option)
1-position ID tool rest ( standard, 3pcs)
Fixed ID tool ER16 collet holder ( standard, 3pcs)
3-position ID tool holder (option)
2-position OD tool holder ( shank axially mounted) (Standard, 1pc)
Note: Tool center height not adjustable
Fixed ID tool ER20 collet holder with nut (option)
ER16 drill collet nut (standard,3pcs)
MODEL
ML-25 HA /30 HA /32 HA
Axis name
X, Z
Bar capacity
25 / 30 / 32 mm
Max. turning length
Bar diameter x 3
Spindle bore
27/24/34 mm
Collet type
161E / 163E / 164E
3-jaw chuck size
5 inch
X-axis travel (Radius/dia.)
340 / 680mm
Z-axis travel (if collet)
95mm (Between collet and cut-off tool holder)
Spindle motor (rated/15min.)
2.2KW
Max. spindle speed
6,000 RMP
Axis motor
0.75 KW
OD tool shank size
16 x 16 mm
Fixed ID tool collet
ER16
Boring bar diameter
20 mm
Spindle center height
935 mm
Packed machine size
2,050(W) x 1,620(H) x 1,260(D) mm
Packed machine weight
1,380 kg
Standard accessories:
1. Syntec Mitsubishi control
2. Standard tools (setup, adjustment)
3. Coolant pump, including flow sensor
4. Hydraulic collet chuck (available only with HA model)
5. Tools, collets for one part requested, but special tools not included.
6. Tool holders (refer to picture)
7. Product catcher & Product box
