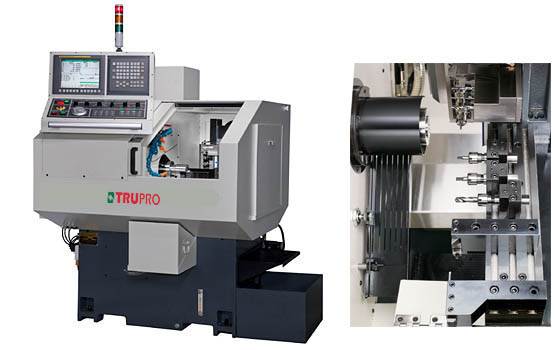

Fixed Head CNC Lathe
Features:

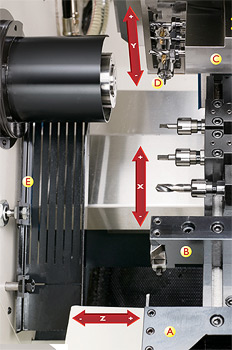

A.Left-handed cut-off tool holder (I pc, standard)
B. 2-position OD tool holder (tool shank radially mounted) (Standard, 2pcs)
C. 3-position face live tool rest (using ERI I collet)-detachable, mounted on 4th cross live tool position.
D. Starting from the lowest tool (Ist) in order, totally 3 cross live tools can be changed to fixed OD tools.
E. Product catcher
2-position ID tool rest (option)
1-position ID tool rest ( standard, 3pcs)
Fixed ID tool ER16 collet holder ( standard, 3pcs)
OD Tool adaptor for cross live tool (18mm bore , option)
2-position OD tool holder ( shank axially mounted) (Standard, 1pc)
Note: Tool center height not adjustable
Fixed ID tool ER20 collet holder with nut (option)
ER16 drill collet nut (standard,6pcs)
20mm shank 1-poaition OD tool holder (standard, 1pc)
MODEL
ML-25HA-DE / ML-30HA-DE / ML-32HA-DE
Axis name
X, Y, Z, C
Bar capacity
25 / 30 / 32 mm
Max. turning length
Bar diameter x 3
Spindle bore
34 mm
Collet type
161E / 163E / 164E
3-jaw chuck size
5 inch
X-axis travel (Radius/dia.)
340 / 680mm
Z-axis travel (if collet)
95mm (Between collet and cut-off tool holder)
8-position tool turret
None
Spindle motor (rated/15min.)
2.2 / 3.7 KW
Max. spindle speed
6,000 RMP
Cross spindle motor/speed
1 kw / 4000 RPM
Axis motor
0.75 KW
Face live tool No s/collet
3/ER11 (option 2/ER20)
Cross live tool No.s
3 / ER16
OD tool shank size
16 x 16 mm
Fixed ID tool collet
ER16
Cross live tool collet
ER16
Spindle center height
900 mm
Packed machine size
2,000(W) x 1,970(H) x 1,300(D) mm
Packed machine weight
1,390 kg
Standard accessories:
1. Syntec Mitsubishi controller
2. Standard tools (setup, adjustment)
3. Coolant flow sensor and pump
4. Hydraulic collet chuck
5. Tools, collets for one part requested, but special tools not included.
6. Tool holders (refer to picture)
7. Product catcher
8. Product box
