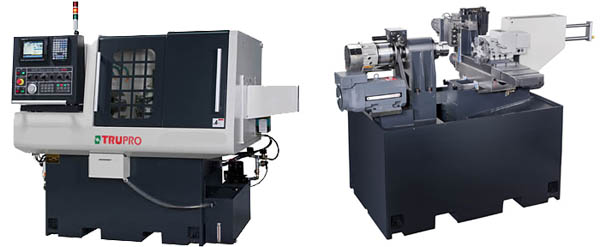

Fixed Head CNC Lathe

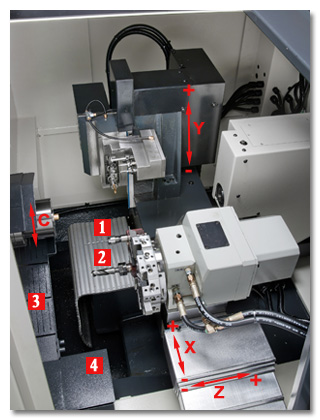

1. Fixed ID tool ER16 collet holder
2.Fixed ID tool ER20 collet holder
3. Parts catcher
4. Parts box
Box door opens automatically when parts catcher moves to receive the completed parts.

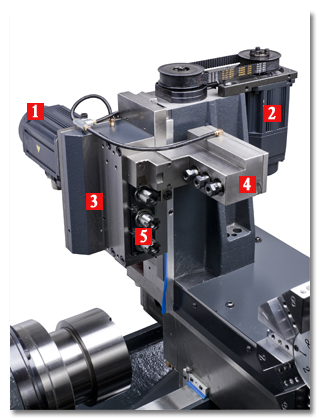

1. Live tool spindle motor
2. Y-axis motor
3. Cross live tool attachment (ER16)
4. Detachable face live tool attachment (ER11)
5. Cross live tool ER16 collet holder
It can be interchanged with #8 optional ∮18mm shank fixed OD tool holder.
Fixed ID tool ER16 collet holder ( standard, 4pcs)
ER16 drill collet nut (standard, 7pcs)
∮18mm shank fixed OD tool holder (optional)
Fixed ID tool ER20 collet holder with nut (option)
MODEL
ML-42HA-DET
Controlled axes
X, Y, Z, C
Bar capacity
42mm
Max. turning length
Bar capacity x 2.5~3
Max. face drilling dia.
Fixed drill:∮13mm
Live drill:∮6mmMax. face tapping size
Fixed tap: M10
Live tap: M5Max. cross drilling dia.
Live drill:∮6mm
Max. cross tapping size
Live tap:M5
Spindle collet type
173E
3-jaw chuck size
6 inch
Tool turret
8 position / servo controlled
X-axis travel
140mm
Z-axis travel
160mm
Y-axis travel
120mm
Rapid traverse
24m/min (Max.)
Spindle indexing
0.001° (C-axis)
Spindle motor (Cont/15min.)
3.7 / 5.5KW
Max. spindle speed
4500RPM
Controlled axis motor
Mitsubishi:X, Z axis:1KW
Y axis:0.75KW
Fanuc:0.75KWTool spindle motor
(Mitsubishi) 1KW, (Fanuc) 0.75KW
Hydraulic motor
0.75KW
Coolant motor
0.75KW
Lubricant motor
0.0035KW
Face live tool Nos/collet
face: 3 / ER11(∮7mm)
Option: 2 / ER20(∮13mm)Cross live tool Nos/collet
cross: 3 / ER16(∮10mm)
OD tool shank
16 x 16 mm
Fixed ID tool collet
ER16(∮10mm)
Option: ER20(∮13mm)
Max. boring bar size
∮20mm
Spindle bore
∮46mm
Spindle center height
1120mm
Required power source
3∮ 220V x 10KVA
Required compressed air
6 Kg/c㎡ x 50 Nl/min
Machine size (WxDxH)
2,060x1,660x1,700mm
(With tail stock: 2,460x1,660x1,700mm)Machine weight
2,200 Kgs
Standard accessories:
1. Tool kit (containing tools for set-up, adjustment, and leveling bolts, block, etc)
2. Automatic lubrication system
3. Work lamp
4. 3-tiered pilot lamp
5. Coolant pump, pressure sensor
6. Hydraulic collet chuck
7. Parts catcher
8. Parts collection box
9. Bar feeder interface
10. 1-position ∮20mm ID tool holder (for turret) 4pcs
11. Fixed ID tool ER16 collet holder (for turret) 4 pcs
12. ER16 collet nut (for cross live tools and fixed ID tools) 7 pcs
13. ER11 collet nut (for face live tools) 3 pcs
14. Cutting tools, spindle collet and drill chucks for parts to be set up, but special tools not included.
