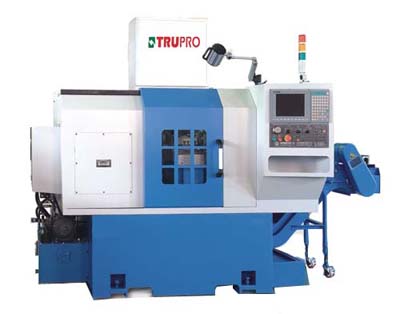

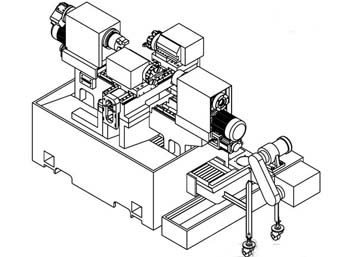

CNC Lathe
Model
ML-525W
Max. swing over bed
200mm
Max. swing over cross slide
170mm
X-axis travel
X1/X2: 100mm
Z-axis travel
Z1/Z2: 300mm
Spindle speed
4000rpm
Spindle nose
A2-5
Spindle diameter
Ø 35mm/ Ø 52mm
Spindle motor
2.2KW
Hollow 3-jaw hydraulic
5”
Feed motor of X-axis
1KW
Slide width of X-axis
300mm
Ball screw of X-axis
Ø 25
Rapid transverse X
20M/min
Feed motor of Z-axis
1KW
Slide width of Z-axis
300mm
Ball screw of Z-axis
Ø 32
Rapid transverse Z
20M/min
Tool
16×16
Max. diameter of boring bar
Ø20mm
N.W./ G.W.
2000kgs/2200kgs
Machine dimension
1600×3000×2200mm
Standard accessories:
1. auto lubricating system
2. coolant system
3. working lamp
4. tool box
5. heat exchanger
6. soft jaw
7. inner diameter tool sleeve: Ø8- Ø 10- Ø 12- Ø 16- Ø 20
8. Ø 20 tool holder with inner diameters
9. the tools are arranged in positive direction.
10.the tools are arranged in negative direction.
11.5” or 6” hollow power chuck
12.chip removing machine + metal cutter
Optional:
1. Hydraulic tailstock
2. Turret (LS-100)
3. Computer control system: FANUC , MITSUBISHI, SYNTEC
