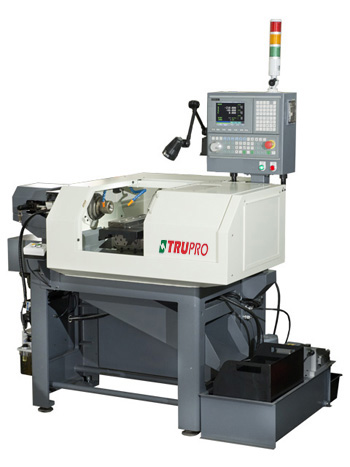

CNC Lathe
Model
ML-20Y
ML-25Y
ML-32Y
ML-42Y
Max. turning diameter
Ø152mm
Swing over cross side
Ø100mm
Effective contact area relative distance
X axis: 230x300mm
Z axis: 200x300mm
NC control
Syntec EZ3T
Min. input unit
0.001
Bore of spindle
20mm
25mm
32mm
42mm
Chuck
Headstock collect
Max. rpm of main shaft
6000rpm
5000rpm
4000rpm
3000rpm
Cutting tool size
16mm
Max. boring tool size
Ø20mm
Z travel
120mm
X travel
215mm
Max. moving speed
15M/min
Main shaft motor
4.5KW
X, Z servo motor
750W
Cooling pump motor
1/4HP
Tank volume
42L
Machine dimension (L x W x H)
1680 x 980 x 2070mm
Packing size
1780 x1170 x 2000mm
Weight
750kgs
760kgs
770kgs
780kgs
Standard accessories:
Headstock collet x1pc
Cooling & heat exchange x1unit
Solenoid valve x 2pcs
Electric lubricators x 1pc
Working light x 1pc
Operator side cutter rack x 1pc
Opposite side cutter rack x 1pc
Height-adjustable cutter rack at operator side x 1pc
Height-adjustable cutter rack at opposite side x 1pc
Boring cutter holder x 1pc
