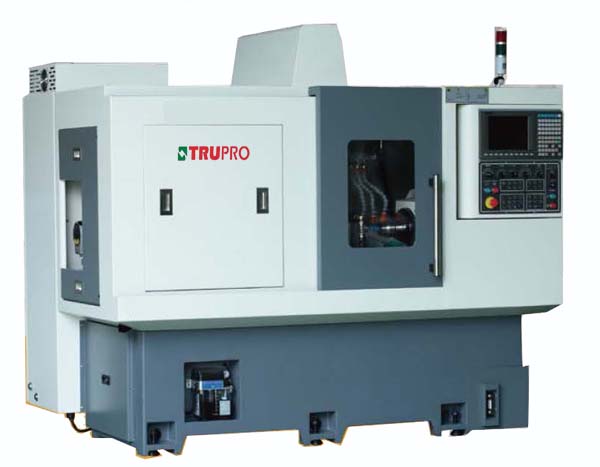

CNC Lathe
Model
ML-25B
ML-32B
Max. turning dia.
25mm
32mm
X-axis travel (vertical)
150mm
Y-axis travel
420mm
X, Y, Z axis rapid travel speed
25M/min
No. of O.D turning tools
6
No. of I.D turning tools
5
Bore of spindle
Ø 28mm
Ø 33mm
Collet of spindle
Citizen #25
164E/1536E
Main- spindle with built-in motor
3.75KW
Height of spindle center
1000mm
Coolant pump for main-spindle
1HP
Spindle rotating speed
6000rpm
Z-axis travel
without guide bush
310mm
With guide bush
180mm
Cutting coolant volume
170L
O.D. turning tool size
16mm
I.D. turning tool Size
Ø 20mm
Servo motor (X, Y, Z, axis)
1KW
Auto lubricator pump
3-6cc /15min
Coolant pump for sub spindle
1/4 HP
Machine size
2700x1580x2000mm
Machine weight
3000kgs
Sub spindle
Max. turning dia.
25mm
32mm
X-axis travel
305mm
Z-axis travel
240mm
No. of O.D. turning tools
1
No. of I.D. turning tools
4
Collet of spindle
Citizen #25
164E/1536E
Max. rotating speed of sub spindle
6000rpm
Sub spindle motor
2.2KW
X, Z-axis rapid travel speed
25M/min
O.D. turning tool size
16mm
I.D. turning tool size
20mm
Servo motor ( X, Z-axis)
1KW
Spindle live tooling
No. of cross side live tooling
4
Servo motor of cross side live tooling
2KW
No. of end side live tooling
3 (option)
Servo motor of end side live tooling
2KW (option)
Size of cross side live tooling
ER16
Max. rotating speed of cross side live tooling
5000rpm
Size of end side live tooling
ER20 (option)
Max. rotating speed of end side live tooling
5000rpm (option)
Sub spindle live tooling (option)
No. of end side live tooling
4
Servo motor of end side live tooling
2KW
Size of end side live tooling
ER16
Rotating speed of end side live tooling
5000rpm
Optional accessories:
Voltage stabilizer.
1HP powerful coolant pump
Electrical steel belt type chip conveyor
Synchronous rotary guide bushing device
Disc brake for sub-spindle
Oil mist collector
CE specification
End side live tooling device for sub spindle (4-shaft)
End side live tooling device for spindle (3-shaft)
Auto bar feeder
