Turn-Key Solution

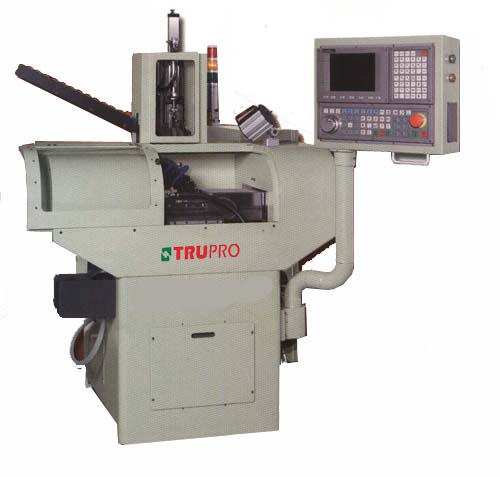

ML-NC05
CNC Lathe
    1. Low cost, flexible, and automatic.
    2. Small land space is require.
    3. Low maintenance expenses.
    4. High mobility, working process flow is easily programmed.
    5. High precision, simple to operate, dialogue signal direction.
    6. High working performance, suitable for high and medium.Productivity, and has equipped with all CNC lathe function, never be prohibited any of the special purpose, and easy to replace the workpice.
    7. Beautiful and fashionable arc-type hoop.

    proimg/ML-NC05-2.jpg

  • Model

    ML-NC05

    Controller

    Syntec EZ-4

    Max. swivel diameter

    Ø 100mm

    Swing over cross base

    Ø 200mm

    X-axis max. travel

    240mm

    Z-axis max. travel

    140mm

    Chuck

    5” 3-Jaw hydraulic chuck

    Max. boring diameter

    Ø 32mm

    Shank

    20mm or 25mm

    Hole through spindle

    Ø32mm

    Main motor

    3HP ( Conversion frequency motor)

    Spindle speed

    4500rpm(variable)

    Ball screw diameter

    Ø 25mmx6P

    Axial power

    1.0KW x2pcs (servo motor)

    Required area

    2100×1500×2000mm

    Machine weight

    1200kgs

  • Standard accessories:

    1. Auto device
    2. Cutting fluid cooling device.
    3. Gang type tool-holder x 4
    4. Tool box



    Optional accessories:

    1. cutting conveyor.
    2. Auto feeder (belt type).
    3. Auto feeder (vibration type)
    4. Chuck inner cleaning device.
    5. High pressure water cooling device.
    6. Low speed, high torque main motor.
    7. Collet chuck
