Clamp Carrier & Hydraulic Composer & Glue Spreader

-

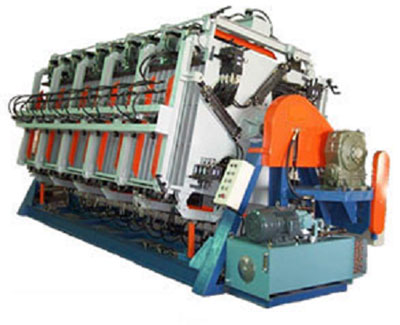

Hydraulic Rotary Composer

  • FEATURES:

    • This machine has four working faces; each face has serval side oil pressure cylinders and upper oil pressure cylinders. It can put larger ares and thicker timbers together. Due to uniform pressure, the flatness of the products will hardly change.
  • WORKING SIZE LENGTH 2120 2540 3200 4600 5200 6200
    WIDTH 1000.1300 1000.1300 1000.1300 1000.1300 1000.1300 1000.1300
    THICKNESS 100&150 100&150 100&150 100&150 100&150 100&150
    OIL CYLINDER NUMBER OF FACE SIDE PRESSURE 80Ø x 80ST
    x 5P    		 80Ø x 80ST
    x 6P    		 80Ø x 80ST
    x 7P    		 80Ø x 80ST
    x 10P    		 80Ø x 80ST
    x 12P    		 80Ø x 80ST
    x 15P
    UP PRESSURE 40Ø x 160ST
    x 5P    		 40Ø x 160ST
    x 6P    		 40Ø x 160ST
    x 7P    		 40Ø x 160ST
    x 10P    		 40Ø x 160ST
    x 12P    		 40Ø x 160ST
    x 15P
    PRESSURE OF OIL 140KG/CM2 140KG/CM2 140KG/CM2 140KG/CM2 140KG/CM2 140KG/CM2
    MACHUNE SIZE LENGTH 3210 3540 4200 5600 6200 7200
    WIDTH 2710 2740 2700 2700 2700 2700
    HEIGTH 2700/3000 2700/3000 2700/3000 2700/3000 2700/3000 2700/3000
    N.W SRC- 4 4500kgs 7000kgs 8500kgs 12000kgs 14000kgs 16000kgs
    G.W SRC- 4 5500kgs 9000kgs 11000kgs 15000kgs 17000kgs 19000kgs
