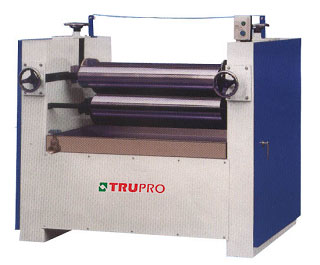

Clamp Carrier & Hydraulic Composer & Glue Spreader
GSD-202S-1D / GSD-203S-1D
Single Surface Glue Spread
Stainless Steel Roller & Rubber Roller
Stainless Steel Roller & Rubber Roller
FEATURES: - Rapidity for gluing speed, time & labour saving, furthermore, to couple with lumber board width, there are being with five models for select.
- During gluing processing, the glue spreading volume adjusting can be adjusted freely at two end of machine and can be purchased the synchronous adj. device as optional, as for the glue spreading thickness can be adjusted freely in 0.5~50mm range , but also can be purchased the synchronous elevating device as optional.
- This m/c is suitable for plywood, thin board, ratten, adjacent commodity, plastic, leather-wares etc., for glue spreading and adhesive use.
Model GSD-202S-1D GSD-203S-1D Width of spreading roller 605mm 909mm Power 1 HP 1 HP Machine size (mm) 1300×900×1400 1700×900×1400 Packing size (mm) 1390×950×1600 1790×950×1600 N.W./G.W. (kg) 560/610 630/700
