Clamp Carrier & Hydraulic Composer & Glue Spreader
GSD-202SH-1D/GSD-203SH-1D/GSD-204SH-1D/GSD-204-5SH-1D/GSD-205-2SH-1D

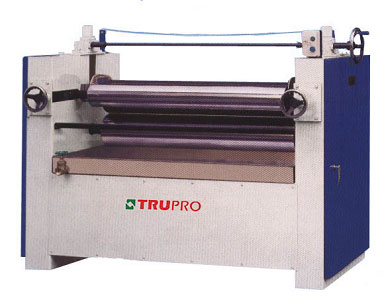

Single Surface Glue Spreader
Stainless Steel & Roller Rubber Roller and with Synchronous Elevating Device
Stainless Steel & Roller Rubber Roller and with Synchronous Elevating Device
FEATURES: - Rapidity for gluing speed, time & labour saving, furthermore, to couple with lumber board width, there are being with five models for select.

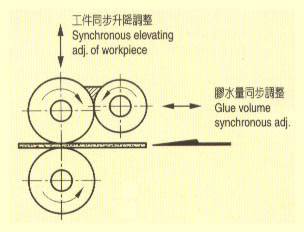

- During gluing processing, the glue spreading volume adjusting can be adjusted freely at two end of machine and can be purchased the synchronous adj. device as optional, as for the glue spreading thickness can be adjusted freely in 0.5~50mm range , but also can be purchased the synchronous elevating device as optional.
- The glue spreading rollers, those are rubber roller & electro-plated steel roller in general, the rubber roller is adopted high quality acid & alkane resistant & thermal resistant roller which can be cleaned by cold or warm water, but also can be purchased the stainless steel roller as optional thus, prolong servicing life.
- This m/c is suitable for plywood, thin board, ratten, adjacent commodity, plastic, leather-wares etc., for glue spreading and adhesive use.
Model GSD-202SH-1D GSD-203SH-1D GSD-204SH-1D GSD-204-5SH-1D GSD-205-2SH-1D Width of spreading roller (mm) 605 909 1213 1363 1575 Power 1 HP 1 HP 2 HP 2 HP 2 HP Machine size (mm) 1300×900×1400 1700×900×1400 1950×900×1400 2150×900×1400 2300×900×1400 Packing size (mm) 1390×950×1600 1790×950×1600 2040×950×1600 2240×950×1600 2500×950×1600 N.W./G.W. (kg) 560kgs/610 630kgs/700 710kgs/780 780kgs/900 900kgs/1000
