Clamp Carrier & Hydraulic Composer & Glue Spreader
GSD-202S-2D / GSD-203S-2D

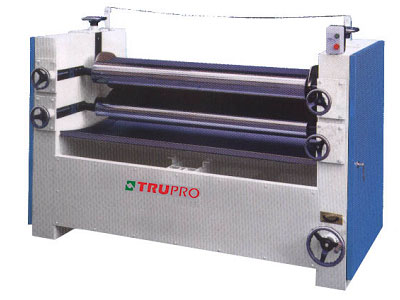

Twin Surface Glue Spreader
Stainless Steel Roller & Rubber Roller
Stainless Steel Roller & Rubber Roller
FEATURES: - Rapidity for gluing speed, time & labor saving, furthermore, to couple with lumber board width, there are being with five models for customers to select.
- During gluing processing, the glue spreading volume adjusting can be adjusted freely at two end of machine and can be purchased the synchronous adj. device as optional, as for the glue spreading thickness can be adjusted freely in 0.5~50mm range , but also can be purchased the synchronous elevating device as optional.
- The glue spreading rollers, those are rubber roller & electro-plated steel roller in general, the rubber roller is adopted high quality acid & alkane resistant & thermal resistant roller which can be cleaned by cold or warm water , but also can be purchased the stainless steel roller as optional thus, prolong servicing life.
- The m/c is suitable for plywood, thin board, rattan , adjacent commodity, plastic, leather-wares etc., for glue spreading and adhesive use.
- The twin surface glue spreader can be divided into two models as fig shown; type A is suitable for conventional professional use. As for type B those are suitable for water base and low viscosity glue in great volume professional use.
Model GSD -202S-2D GSD -203S-2D Width of spreading roller 605mm 909mm Power 1 HP 1 HP Machine size 1300×900×1400mm 1700×900×1400mm Packing size 1390×950×1600mm 1790×950×1600mm N.W./G.W. 560kgs/610kgs 630kgs/700kgs
