Clamp Carrier & Hydraulic Composer & Glue Spreader

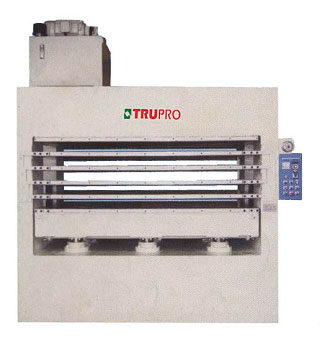

CCZ-48-200 / CCZ-48-300
Hot Presses (Five Layer)
Solid heating plate
Typical examples
Typical examples
Typical examples
Typical examples
FEATURES: - The heating style of this m/c can be divided into electric thermo-couple heating, steam boiler heating & hot transfer oil heating etc.
- The electric platen is made of thick rigid steel plate and drilling hole to inserted the electric heating tube, the heating resistant can be reached 150°C max, and the max. pressure resistant which about 20 kg/cm2.
- The steam platen is made of thick rigid steel plate and drilling hole to circulate the heating medium, the heating resistant can be reached 200°C max, and the max. pressure resistant which about 20 kg/cm2.
- The impressing platen surface is plated with stainless steel which convenient for pressing processed.
- The two end of m/c is installed gear rack which can be made the hydraulic cylinder synchronous elevating completely. Since, the total acting force of impressed platen can be spreaded evenly.
- This m/c is suitable for lumber, plywood, membrane, decorative paper, veneered paper or PU injection forming, foam forming, bakelite hot pressing forming & chip board forming etc.
Standard accessories of electrical controlling: - Auto temp controlling switches.
- Compression holding timer.
- Manual / auto selecting switches.
- Compensated pressure setting gauge.
- Motor overload pilot lamp.
- Emg. Stop switches.
- Auto start switches.
- Creep elevating switches.
- Electric heating abnormal indicating meter.
MODEL CCZ-48-200 CCZ-48-300 Platen size 2500×1300 mm 2500×1300 mm Daylight 100 mm 100 mm Total thrust 200 Ton 300 Ton Hyd. cylinder Ø150×6 Ø180×6 Stroke 500 mm 500 mm Pressure kg/cm2 6.4 9.6 Hyd. power 15 HP 15 HP Max. electric platen 13.6 KW 13.6 KW Machine size 3900×1800×2800 mm 3900×1800×2800 mm
