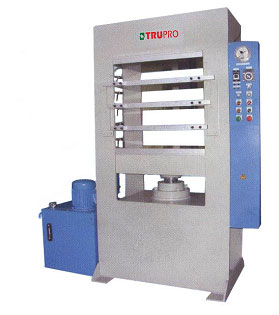

CCZ-33-100
Hot Presses (Four Layer)
Solid heating plate
Typical examples
Typical examples
Typical examples
Typical examples
FEATURES: - The heating style of this m/c can be divided into electric thermo-couple heating, steam boiler heating & hot transfer oil heating etc.
- The electric platen is made of thick rigid steel plate and drilling hole to inserted the electric heating tube, the heating resistant can be reached 150°C max, and the max. pressure resistant which about 20 kg/cm2.
- The steam platen is made of thick rigid steel plate and drilling hole to circulate the heating medium, the heating resistant can be reached 200°C max, and the max. pressure resistant which about 20 kg/cm2.
- The impressing platen surface is plated with stainless steel which convenient for pressing processed.
- The two end of m/c is installed gear rack which can be made the hydraulic cylinder synchronous elevating completely. Since, the total acting force of impressed platen can be spreaded evenly.
- This m/c is suitable for lumber, plywood, membrane, decorative paper, veneered paper or PU injection forming, foam forming, bakelite hot pressing forming & chip board forming etc.
Standard accessories of electrical controlling: - Auto temp controlling switches.
- Compression holding timer.
- Manual / auto selecting switches.
- Compensated pressure setting gauge.
- Motor overload pilot lamp.
- Emg. Stop switches.
- Auto start switches.
- Creep elevating switches.
- Electric heating abnormal indicating meter.
MODEL CCZ-33-100 Platen size 1000×1000 mm Daylight 100 mm Total thrust 100 Ton Hyd. cylinder Ø250×1 Stroke 400 mm Pressure kg/cm2 10 Hyd. power 5 HP Max. electric platen 4 KW Machine size 1600×1200×2400 mm
