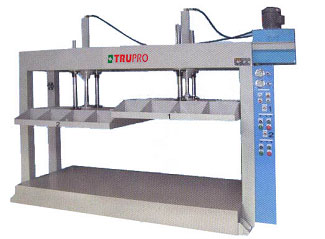

Clamp Carrier & Hydraulic Composer & Glue Spreader
CCZ-HC-10 / CCZ-HC-20 / CCZ-HC-10-2 / CCZ-HC-20-2
Cold Presses (Standard)
FEATURES: - This m/c is suitable for plywood, composite wood, cork board, medi-board, fiber-board, hollow core panel, honeycomb board etc., surface to laminate membrane processing.
- The two end of m/c is installed gear rack which can be made the hydraulic cylinder synchronous elevating completely. Since, the total acting force of impressed platen can be spreaded evenly.
- This m/c is installed working pressure setting device which can be maintained the setting pressure oftenly due to necessary.
MODEL CCZ-HC-10 CCZ-HC-20 Platen size 2500×1250 mm 2500×1250 mm Daylight 1000 mm 1000 mm Total thrust 10 Ton 20 Ton Hyd. cylinder Ø80×2 Ø100×2 Stroke 600 mm 600 mm Pressure kg/cm2 0.32 0.64 Hyd. power 2 HP 2 HP Machine size 3100×1400×2400 mm 3100×1400×2400 mm
