Clamp Carrier & Hydraulic Composer & Glue Spreader

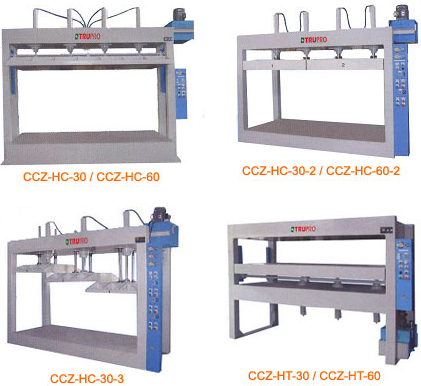

CCZ-HC-30 / CCZ-HC-60 (Standard)
CCZ-HC-30-2 / CCZ-HC-60-2 (Standard)
CCZ-HC-30-3 (Special)
CCZ-HT-30 / CCZ-HT-60(Special)
Cold Presses

  •







    FEATURES:
    • This m/c is suitable for plywood, composite wood, cork board, medi-board, fiber-board, hollow core panel, honeycomb board etc., surface to laminate membrane processing.
    • The two end of m/c is installed gear rack which can be made the hydraulic cylinder synchronous elevating completely. Since, the total acting force of impressed platen can be spreaded evenly.
    • This m/c is installed working pressure setting device which can be maintained the setting pressure oftenly due to necessary.




  • MODEL CCZ-HC-30 CCZ-HC-60
    Platen size 2500×1250 mm 2500×1250 mm
    Daylight 1000 mm 1000 mm
    Total thrust 30 Ton 60 Ton
    Hyd. cylinder Ø80×4 Ø100×4
    Stroke 600 mm 600 mm
    Pressure kg/cm2 0.96 1.9
    Hyd. power 3 HP 5 HP
    Machine size 3300×1400×2400 mm 3300×1400×2400 mm
