Clamp Carrier & Hydraulic Composer & Glue Spreader

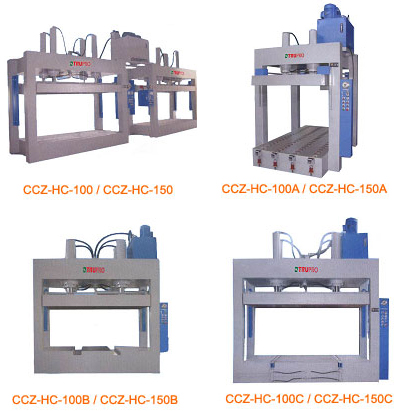

CCZ-HC-100 / CCZ-HC-150 (Standard)
CCZ-HC-100A / CCZ-HC-150A (Special)
CCZ-HC-100B / CCZ-HC-150B (Special)
CCZ-HC-100C / CCZ-HC-150C (Special)
CCZ-HC-100A / CCZ-HC-150A (Special)
CCZ-HC-100B / CCZ-HC-150B (Special)
CCZ-HC-100C / CCZ-HC-150C (Special)
Cold Presses
FEATURES: - This m/c is suitable for plywood, composite wood, cork board, medi-board, fiber-board, hollow core panel, honeycomb board etc., surface to laminate membrane processing.
- The two end of m/c is installed gear rack which can be made the hydraulic cylinder synchronous elevating completely. Since, the total acting force of impressed platen can be spreaded evenly.
- This m/c is installed working pressure setting device which can be maintained the setting pressure oftenly due to necessary.
MODEL CCZ-HC-100 CCZ-HC-150 Platen size 2500×1250 mm 2500×1250 mm Daylight 1000 mm 1000 mm Total thrust 100 Ton 150 Ton Hyd. cylinder Ø125×4 Ø150×4 Stroke 600 mm 600 mm Pressure kg/cm2 3.2 4.8 Hyd. power 5 HP 7.5 HP Machine size 3300×1400×2480 mm 3400×1400×2500 mm
