Model

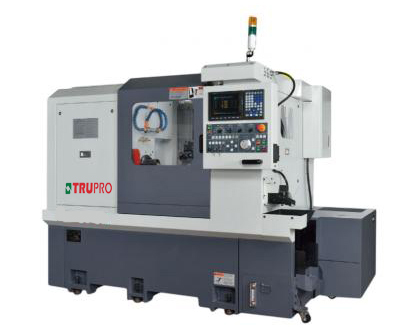

ML-ND42AY

ML-ND65AY

Capacity

Bar dia. thru bore (collet chuck)

42mm

65mm

Dia. Swing over bed

355mm

355mm

Max. turning dia. (3-jaw chuck)

165mm

210mm

Max. turning length

Collet chuck

300mm

300mm

3-jaw chuck

280mm

254mm

Main spindle

Center height

1100mm

1100mm

Spindle nose

ISO A2-5

ISO A2-6

Collet chuck type

B42/F48(max. 42mm)

B65/F72(max. 65mm)

3-jaw chuck size

6”

8”

Spindle / draw tube thru hole

53mm/45mm

78mm/66mm

Motor power

ME-68

5.5KW/7.5HP

5.5KW/7.5HP

S802D

9.0KW/13.0HP

9.0KW/13.0HP

Max. spindle speed

5000rpm

4000rpm

Main slide

Z-axis slide travel

300mm

300mm

X-axis slide travel

125mm(8-LT) / 150mm(12-LT)

125mm(8-LT) / 150mm(12-LT)

Y-axis slide travel

±55mm

±55mm

Resolution

0.001mm/0.0001”

0.001mm/0.0001”

Turret

Turret model

8-LT/12-LT

8-LT/12-LT

Tool shank sizes(OD/ID)

20mmSQ / 25mm Dia.

20mmSQ / 25mm Dia.

Servo motors

Rapid move X/Z-axis

20M/min

20M/min

Rapid move Y-axis

8M/min

8M/min

Feed rate

0-10000mm/min

0-10000mm/min

X/Z-axis power

ME-68

3.2NM/1KW

3.2NM/1KW

S802D

7.3NM/2.29KW

7.3NM/2.29KW

Y-axis power (Braked)

ME-68

4.8NM/1.5KW

4.8NM/1.5KW

S802D

4.7NM/1.48KW

4.7NM/1.48KW

Hydraulic tailstock

Quill diameter

50mm

50mm

Center taper

MT3 / MT4

MT3 / MT4

Quill stroke

80mm

80mm

Manual stroke

185mm

185mm

Hydraulic pressure

5-30KG/cm2

5-30KG/cm2

Machine

Overall dimensions

2780*1750*1950mm

2780*1750*1950mm

Machine weight

3500kgs

3600kgs

Hyd. Tank capacity

35L

35L

Hyd. Pump motor

0.75KW

0.75KW

Coolant tank capacity

160L

160L

Coolant pump

1.27KW

1.27KW

Lubrication capacity

4L

4L

Total power required (ME68 / S802D

15KVA/20KVA

15KVA/20KVA
