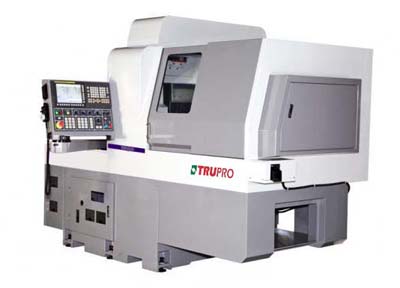

Swiss-Turn Gang tool type ML428
Model
ML-428
Max. turning dia.
42mm
Max. turning length (Rotary)
300mm
Max. turning length (Fixed):
340mm
Max. turning length (Non guide bush)
105mm

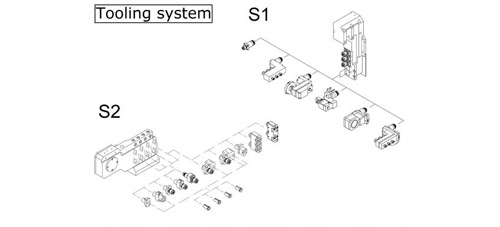

OD tooling holder
6pcs
ID tooling holder
5pcs
Cross live tooling holder
3pcs(ER-20)
Cross live tooling holder
2pcs(ER-16)
Face live tooling of sub spindle holder
8pcs(ER-16)
Sub spindle aside drilling tooling holder
2pcs

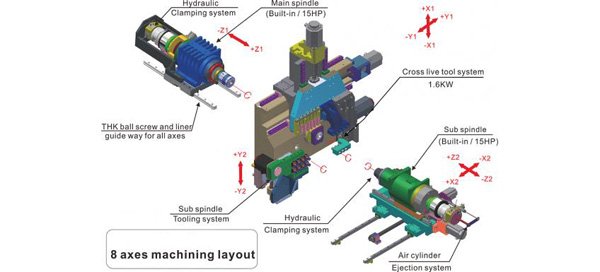

No. of axis controls (with C axis)
8pcs
C axis control minimum
0.001°
Max. main spindle speed
6000rpm
Max. sub spindle speed
6000rpm
Rapid traverse of X1/X2/Z1/Z2/Y1
30M/min
Rapid traverse of Y2
20M/min
Main spindle motor
11KW
Sub spindle motor
11KW
Main spindle cooling
Oil cooling
Sub spindle cooling
Oil cooling
Main spindle clamping system
Hydraulic
Sub spindle clamping system
Hydraulic
Cross live tooling motor
1.6KW / 6000rpm
Face live tooling motor of sub spindle
1.4KW / 6000rp
Lubrication tank
2L
Air compressed pressure
0.6Mpa
Air compressed flow
10L/min
Machine dimension (L x W x H)
2945 x 1650 x 2130mm
Coolant tank
270L(100%)
Weight
4450kgs
Standard accessories:
1. Parts catcher
2. Parts conveyor
3. LED 3 color alarm light
4. LED working light and spindle room light
5. Standard tools (Hex. and open-end wrench set)
6. Collect wrench set
7. Guide bush wrench set
8. Tool box
9. Coolant supply system
10. Coolant tank (270L/100% full)
11. Lub. oil for liner and ball screw
12. Lub. oil for cross and face live tool
13. Main/sub spindle oil cooling system
14. Sub spindle part ejection by air cylinder
15. Transformer
16. Chip conveyor with cart
17. Coolant check device (electrical type)
18. Machine base blocks(6sets)
19. Collet position pin(2pcs)
20. Collet spring(2pcs)
21. Part ejection head
22. Tool life management
23. Machining program execution by hand wheel
