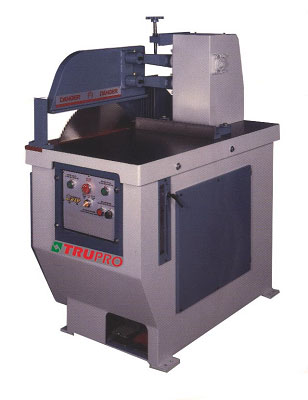

Cross Cut Off Saw

TP-24R / TP-24L
24 Cut Off Saw

  • FEATURES:

    • Choice of right or left hand feed models.
    • Double start switches need both hands to start the machine-providing added safety.
    • Two foot switches. One controls clamp lowering and blade raising. The other controls clamp raising and blade lowering.
    • Thickness of cut is adjusted by turning a hand lever.
    • Available to equip with enclosed safety guards or pneumatically operated safety screen.(optional)
  • Model TP-24R / TP-24L
    Saw blade 24"× Ø1"×4.0mm×120T
    Motor 10HP
    Saw arbor speed 2000 RPM
    Cuts per minute 40 cuts
    Table area 630×1150 mm2
    Table height from floor 860 mm
    Air pressure 4 kg/cm
    Packing dimensions 850×1300×1500 mm
    N.W / G.W 480 /550 kgs
