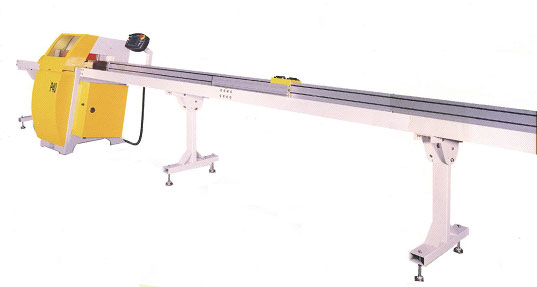

Cross Cut Off Saw

CS-40 / CS-50

Automatic Programmable Cut-Off Saw

Touch Screen
The touch screen's function button allows practical understanding thus bringing out the best of this devise

PLC controlled automatic fence device by servomotor active as:
STOP: Just key in the size, it will automatic moved to the position, ready for the job size
Push FENCE: Just key in all the sizes and quantities, it will move to the length then push to the first size. When the job finished, it will keepgoing for the quantity or the next size inputted continued until all the setting was finished, it will restart again.
Standard eight sets of job data memory.
Extendable: printer, PC link, and unlimited memory.
Efficiency and Accuracy for all the jobs require sizing such boring, drilling and cutting.
Super traveling speed up to 200 feet per minute.
Within +-0.10mm accuracy.
Other lengths are available.

FEATURES:

	SINGLE: This section is acted as stopper for single size cutting. Just key in the desired size for the cutting length or choice the size from the 10 sets of memory.
	AUTO SINGLE: This section is acted as single size with multiple cutting quantities. Key in the desired cutting length, material length and the pusher will move to the size every time for the auto cutting cycle.
	MULTIPLE: This section is acted as multiple sizes and multiple quantities by automatic cutting cycle. Key in the material length, trim size, desired cutting size and quantity. The program will show the length of remain material automatically. 50 set memory with each of 10 sets of cutting length and quantity.

Optional equipment:
Auto tracer A fluorescent pen is used to mark off unwanted marks on the material which is later cut off with the aid of a sensor.
