Cross Cut Off Saw
CS-40X / CS-50X

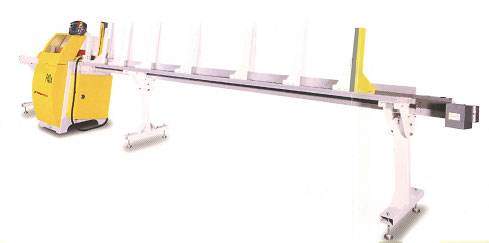

Automatic Programmable Cut-Off Saw with Feed Magazine
Touch Screen
The touch screen’s function button allows practical understanding thus bringing out the best of this devise- PLC controlled automatic fence device by servomotor active as:
STOP: Just key in the size, it will automatic moved to the position, readyfor the job size
Push FENCE: Just key in all the sizes and quantities, it will move to thelength then push to the first size. When the job finished, it will keepgoingfor the quantity or the next size inputted continued until all the setting was finished, it will restart again. - Standard eight sets of job data memory.
- Extendable: printer, PC link, and unlimited memory.
- Efficiency and Accuracy for all the jobs require sizing such boring, drilling and cutting.
- Super traveling speed up to 200 feet per minute.
- Within +-0.10mm accuracy.
- Other lengths are available.
FEATURES:
SINGLE:
This section is acted as stopper for single size cutting. Just key in the desired size for the cutting length or choice the size from the 10 sets of memory.
AUTO SINGLE:
This section is acted as single size with multiple cutting quantities. Key in the desired cutting length, material length and the pusher will move to the size every time for the auto cutting cycle.
MULTIPLE:
This section is acted as multiple sizes and multiple quantities by automatic cutting cycle.
Key in the material length, trim size, desired cutting size and quantity. The program will show the length of remain material automatically. 50 set memory with each of 10 sets of cutting length and quantity.Optional equipment:

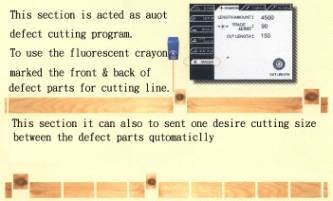

Auto tracer
A fluorescent pen is used to mark off unwanted marks on the material which is later cut off with the aid of a sensor.
SIDE ALIGNMENT
Pneumatic alignment device to push the material against the fence for accurate cutting size.
SIDE ALIGNMENT(Patent)
Special design flip able side alignment device, enable for narrow or quickly flip up for wider material without any time wasting.
Servomotor system
The positioning device uses the servomotor system.

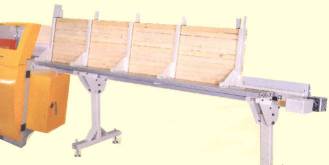

Its advantage is fast movement and accurate positioning.AUTO FEED MAGAZINE (Patent )
Designed for automatic hopper feeding with repeated cutting cycle by the pusher.
- PLC controlled automatic fence device by servomotor active as:

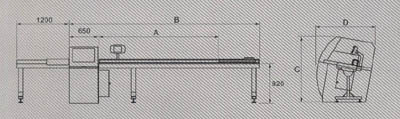

A B C D CS40X/CS50X-250 2500 4200 CS40X 1300 1000 CS40X/CS50X-350 3500 5200 CS50X 1600 1400 CS40X/CS50X-450 4500 6200 CS40X/CS50X-550 5500 7200 Model CS-40X CS-50X Main shaft motor 10HP Feed motor 400W Feed speed 10-60 m/min Main sawblade size Ø455mm × 3.4mm × Ø1' Ø600mm × 4.0mm × Ø1" Main sawblade r.p.m 3700 r.p.m 2000/2800r.p.m Standard air pressure 6-8kg/cm2
