Disc Sander & Drum Sander
DS-25

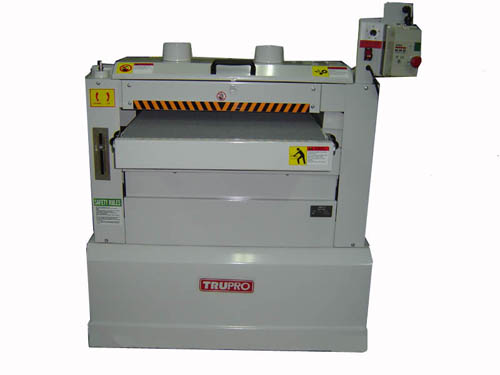

Drum Sander
- An economical sander provides 25" sanding width capacity.
- High quality conveyor belt for long service life.
- Variable feed speed 3-20 FPM.
- Dynamically balanced sanding drums ensure smooth running.
- Two -sanding-drum configuration provides high efficiency sanding performance.
- Conveyor belt tracking is convenient to adjust.
- The sanding drum drive is controlled by a magnetic switch.
- The conveyor belt running is operated by a key switch.
- Convenient replacement of sanding belt.
- 4" diameter dust hood.
- 3HPdrive for sanding drum
Model
DS-25
Drum length
25”
Max. thickness of workpiece
5”
Min. thickness of workpiece
1/4”
Sanding drum speed
1600rpm
Conveyor belt speed
3.7-19 FPM
Sanding drum motor
3 HP
Feed drive motor
1/6HP
Sanding drum diameter
Ø5”
Net weight
180 kg
Gross weight
210 kg
Machine dimension
45”×28”×52”
Package dimensions
47.1’cuft
