Disc Sander & Drum Sander

Model

DS-13

Max. sanding width

13"(330.2mm)

Max. thickness of workpiece

12"(304.8mm)

Min. thickness of workpiece

1/4"(6.35mm)

Sanding drum speed

1720rpm

Sanding drum diameter

6-15/32" (164.1mm)

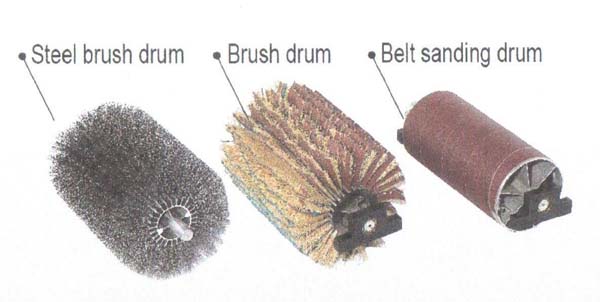

Brush outer drum and steel brush drum speed

430rpm & 860rpm

Brush outer diameter

10"(254mm)

Steel brush outer diameter

10"(254mm)

Conveyor belt speed

3~20 FPM

Sanding drum motor

1.5 HP

Feed drive motor

1/15HP(DC)

Net weight

117.4 kg

Gross weight

137 kg

Package dimensions

930×910×167mm
