Disc Sander & Drum Sander

BOB-JM

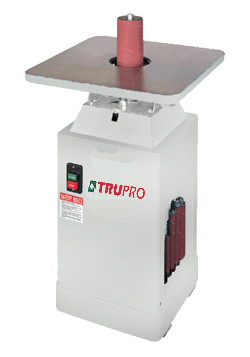

Oscillating Vertical Spindle Sander
  •
    		The machine is furnished standard with ten sizes of spindle.
    #1  1/4" dia. x 5" long
    #2  3/8" dia. x 6" long
    #3  1/2" dia. x 6" long
    #4  5/8" dia. x 6" long
    #5  3/4" dia. x 9" long
    #6  1" dia. x 9" long
    #7  1 1/2" dia. x 9" long
    #8  2" dia. x 9" long
    #9  3" dia. x 9" long
    #10  4" dia. x 9" long
    FEATURES:
    • The rubber drum can be fitted on both ends to fully utilize the entire spindle.
    • The oscillating sanding provides an extremely fine sanding finish.
    • Ten sanding drums can be accommodated.
    • Easily interchanged spindles.
    • The tilting table is precision ground.
    • Heavy gauge steel frame.




  •

    Model BOB-JM
    Speed 1725 RPM
    Oscillations per minute 75
    Length of oscillation 1 1/2"
    Table size 24" x 24"
    Table tilt 0°- 45°
    Table height from floor 37.4" (950mm)
    Motor 1 HP
    Net/Gross weight 137 /145kgs
    Packing dimensions 27" x 27" x 46"
