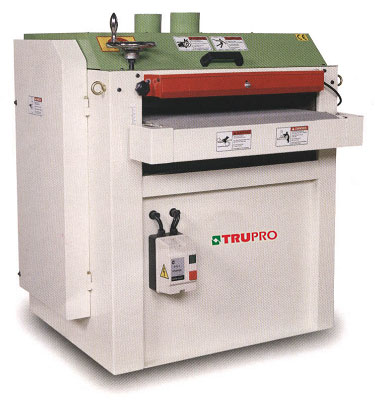

Disc Sander & Drum Sander
DS-2514 / DS-2524
Drum Sander
Standard Features: - Ruggedly constructed throughout assures maximum stability and minimum noise.
- Heavy gauge steel frame and conveyor table for maximum durability without deformation.
- Equipped with high efficiency dust system.
- Thickness limit control switch ensures operation safety.
- Industrial grade conveyor belt provides smooth running and slipping-free performance.
-
Sanding belt is specially wound for maximum security.
Guarantees no folding or breaking during sanding operations. - Two sanding drums position may be micro metrically adjusted.
- 4 heavy duty jack screws provide solid support for conveyor table.
- Minimum sanding length 8" (203mm)
- Thickness capacity on each sanding is 0.10~0.40mm.
- Various sanding belts for choice #60, #80, #100, #150, #180, #240
- Variable feeding speed (optional)
Drum Sander
This versatile drum sander is designed for
sanding a wide variety of parts, such as
metal, non-metal, wood and PC board etc.
Also, excellent for efficient sanding for
wood door frame, window, and stripe.Two sanding drum configuration
The front steel drum provides smooth
surface effect.
The rear drum is rubber to create find
finish surface.
Efficient dust system design
Specially designed five pressure rollers ensure safety and stability of sanding operation
Rigid cast alum. table on 37" and 54" model
Metallic table on 25" model
Model DS-2514 DS-2524 Sanding roller 1 roller 2 roller Max. sanding width 635 mm(25") 635 mm(25") Max. sanding thickness 100mm(4") 100mm(4") Table dimension 635×646 mm(25"×25-1/4") 635×870 mm(25"×34-1/4") Sanding wheel diameter 150mm(6") 150 mm(6") Speed of sanding wheel 1720RPM 1720RPM Feeding speed 3.7M/min(12FPM) 3.7M/min(12FPM) Sanding motor 3HP 5HP Feeding motor 1/4HP 1/4HP Overall dimension 37"D×32"W×43"H 37"D×41"W×43"H Packing diameter 41"D×34"W×45"H 42"D×45"W×45"H Net weight 440 lbs 200KGS 838 lbs 380KGS Gross weight 529 lbs 240KGS 948 lbs 430KGS
